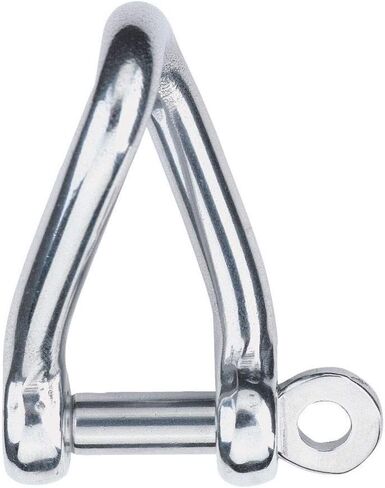

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Shackle pin Ø (mm)5 mm Shackle pin Ø (in)3/16 in Weight (g)22 g Weight (oz)0.78 oz A (mm)37 mm
A (in)1 7/16 in B (mm)10 mm B (in)3/8 in Maximum working load (kg)540 kg
Maximum working load (kg)540 kg Maximum working load (lb)1190 lb Breaking load (kg)1080 kg Breaking load (lb)2380 lb
Description
SHKL-5MM TWIST 316 Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing. MFG# 2105 UPC# 097653035817
