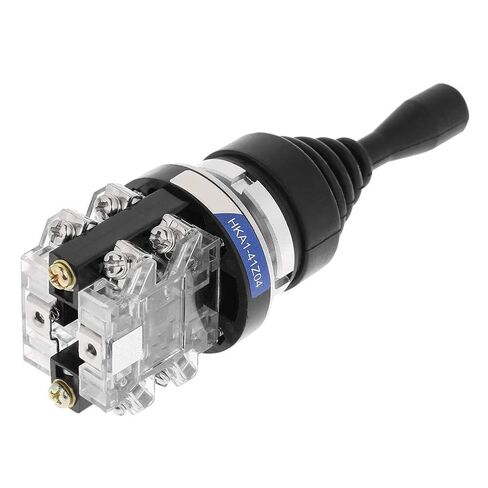

Fdit 4 Position Joystick Switch 4NO Spring Position Return Momentary Joy Stick Replacement for HKAI-41Z04

KWD 9
KWD 9.500
Brand
Fdit
– 1 +

Special Features

  • WIDELY USED: This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits
  • ELECTRICAL CIRCUITS CONTROL: It can control magnetic starter, contactor, relay and other electrical circuits
  • ANTI-WATER, OIL & DUST: The rubber sleeve has the characteristic of water resistance, oil resistance and dust resistance
  • MOMENTARY SWITCH: The joystick switch is a momentary switch, 4NO type, so it has 4 normally open contacts
  • LONG SERVING LIFE: This spring return switch is easy for mounting and operation, with long serving life

Description

Descriptions:
This momentary joystick switch is widely used for industrial control AC 50Hz and DC circuits.It can control magnetic starter, contactor, relay and other electrical circuits.

Specifications:
Model: HKAI-41Z04
Contact: 4 NO
Rated voltage: 220V / 380V
Rated current: 5A / 10A
Assembly aperture: Dia. 30mm
Electrical life: >500,000 times
Mechanical life: > 500,000 times
Standard operating environment:
Ambient temperature: -25 ~ +55 degrees Celsius (no ice)
Operating humidity: 45 ~ 85%RH (no condensation)
Contact resistance: 50mΩ
Insulation resistance: 100Ω
Maximum withstand voltage: 3000V, AC 50Hz
Vibration: 50 Hz, amplitude: Approx. 1mm
Impact resistance: > 10m/s2(about 10G)
Protection grade: IP55
Overall size: 15 x 4.8cm /5.91 x 1.89inch
Weight: 217g

Package Includes:
1 x Momentary Joystick Switch
