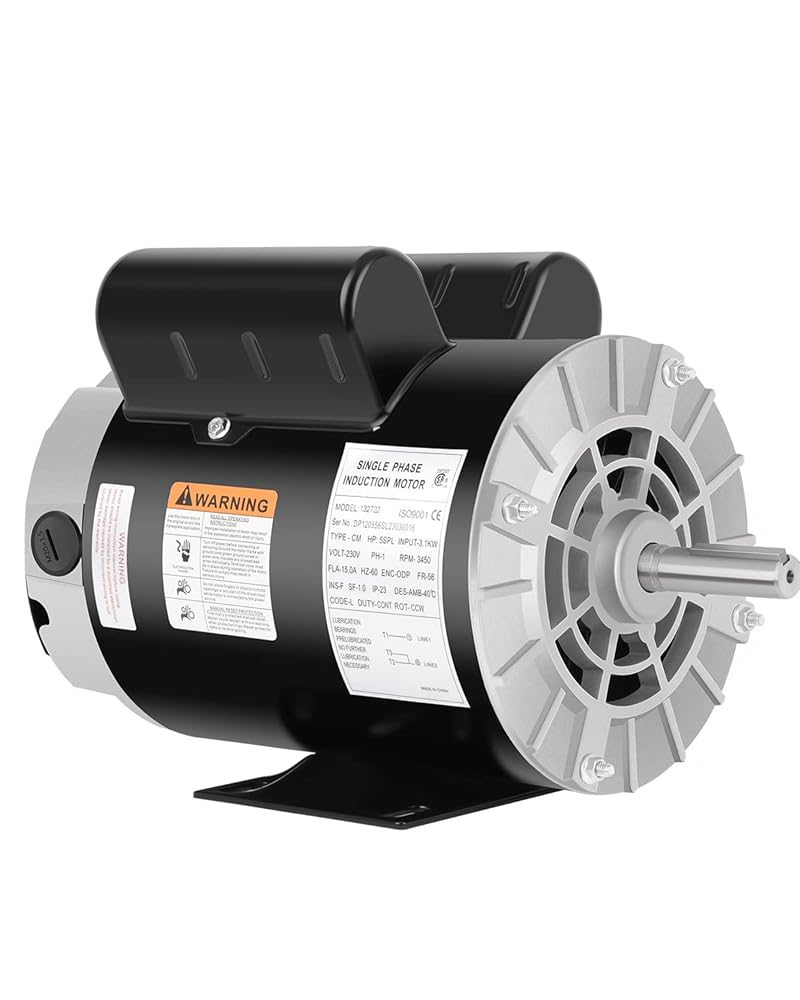

Air Compressor Motor 5 HP SPL Electric Motor 3450 RPM, 230V Single Phase Motor, 56 Frame 5/8 Keyed Shaft 60 HZ

KWD 76.500
Brand
GCCSJ
Category
Electric Motors
Size5HP SPL
StyleSingle phase motor
– 1 +

Special Features

  • 🖐️Air Compressor Motor: HP - 5HP SPL, POLE - 2, FRAME - 56, ENC - ODP, IP - 23, HZ: 60Hz, Voltage: 230V, AMP: 15A, RPM: 3450, INS - F, Rotation - CCW, Shaft diameter - 5/8", Shaft length - 1.88".
  • 🖐️High Working Efficiency: Compact structure and small size, electric motor can run at the maximum speed of 3450 rpm, high working efficiency; There are lots of heat sinks, so it has huge heat sinks.
  • 🖐️AC Motor Housing material: The electric motor is made of the rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life.
  • 🖐️Open Drip Proof: The EFC of the 5HP SPL electric motor is ODP. ODP is better used in the environment that are relatively clean and dry environments.
  • 🖐️Widely Application: The electric motor has protector, designed for air compressor. Please purchase the motor according to the specific requirements of the air compressor.
