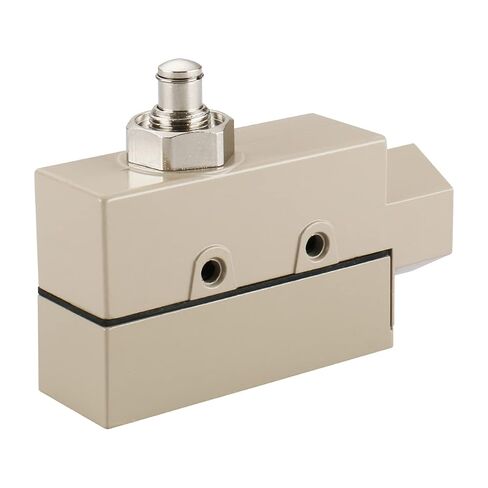

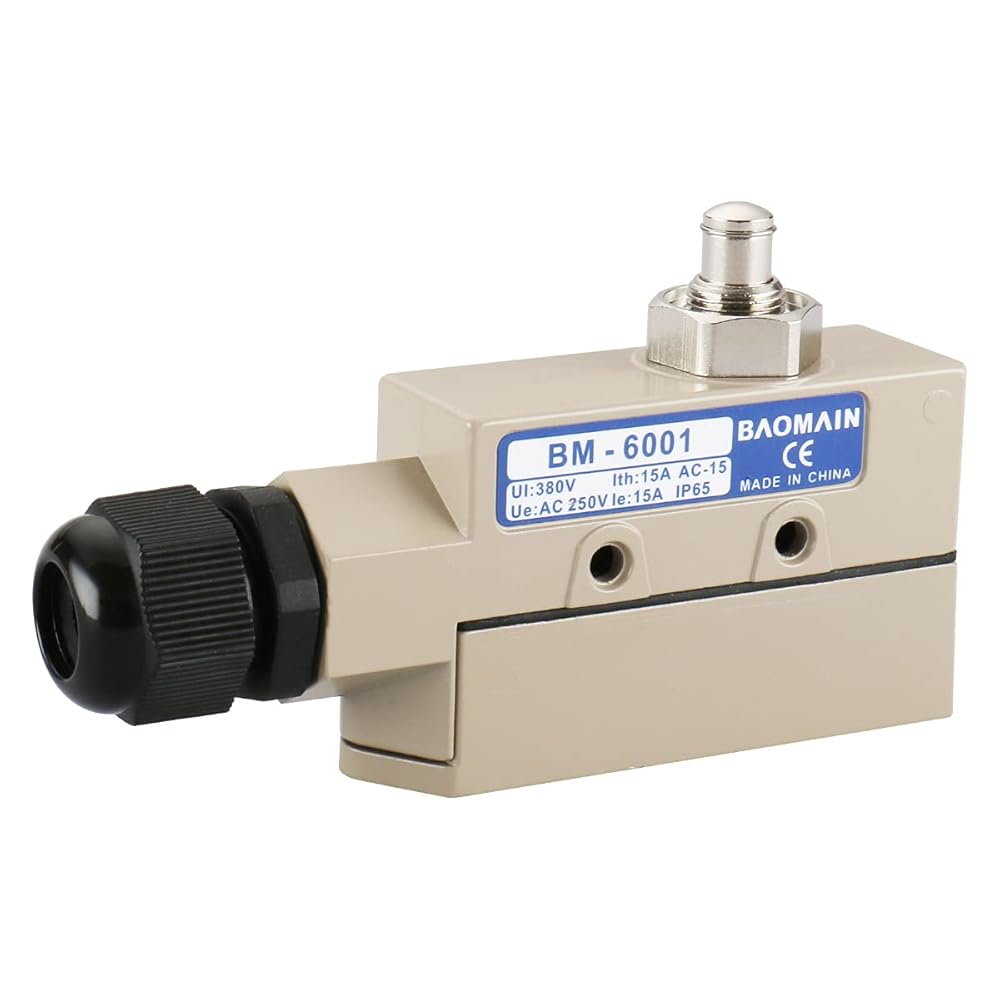

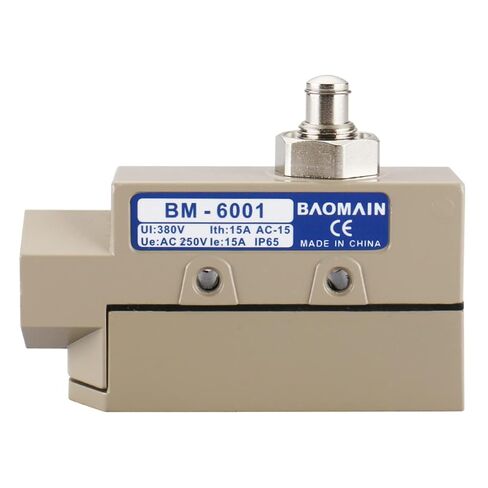

مفتاح حد مختوم من Baomain TZ-6 TZ-6001 AC 250V 15A مكبس فقط لباب الدفع والسحب/الباب القابل للطي - مناسب لستائر Maxwell وPioneer وAerial وAwoco وMars Air وWelbon IP65 CE

KWD 7
ماركة
Baomain
– 1 +

مميزات خاصة

  • Built-in TM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof
  • It is the same as TM micro switch in the rated value and characteristics
  • Various of actuators that are taken convenience for using

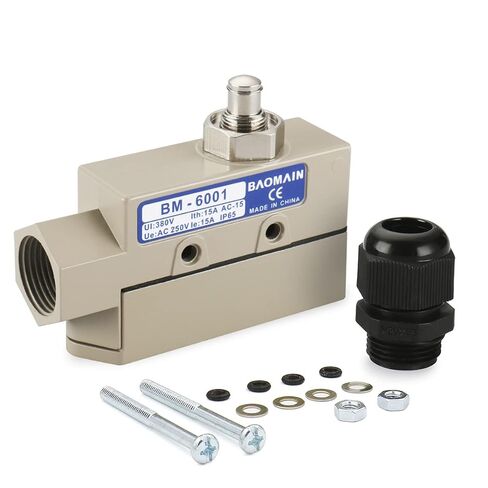

  • Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut
  • M20x1.5 cable gland that can be equipped
  • Weight:260g

وصف

Type of the head: Metal cylinder
Power of starting: 350
Power of release: 115
Switching position (mm): 0.5mm
Rated current In(А): 15A active load. 5A inductive load
Insulation resistance: 100
Rated voltage: 230V
IP code: IP65
Section of the power supply conductor: up to 1.5mm2
Standards: GB14048.5
