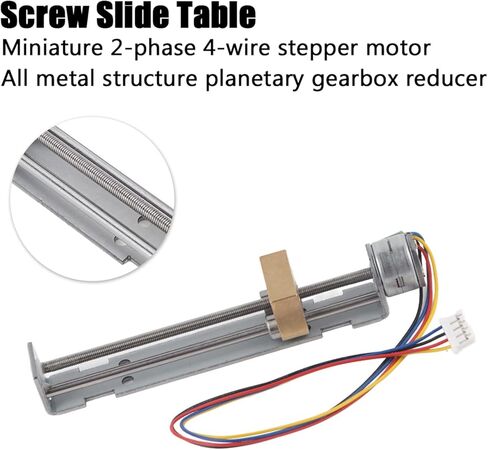

fosa1 Stepper Motor Linear, Linear Slide Table Miniature Screw Slider Table 2Phase 4Wire 18° Step Angle Nut 15 Small Motor Fit for DIY Small Slider/Project/Measurement

KWD 12.500
Brand
fosa1
Weight
61 g
– 1 +

Special Features

  • Come with advanced technology with fine workmanship, which is a necessary linear moving parts
  • Using high class materials with good quality to guarantee stable performance and high working efficiency
  • This miniature 2phase 4wire stepper motor come with planetary , planetary reducer adopts all metal structure
  • You can drive accurate diagonal lines to move the metal slider up and down, the bracket is basically made of metal structure
  • Stepper motor linear can be used in DIY small slider/project/measurement equipment/laser printer

Description

Item Type: Stepper Motor Linear
Motor Type: 2-Phase 4-wire
Drive Voltage: 4-9V/100-500mA (the higher the voltage, the greater the force, the greater the heat)
Screw Length: Approx. 90mm / 3.5in
Slider Stroke: Approx. 80mm / 3.1in
Motor Diameter: Approx. 15mm / 0.6in
Screw Diameter: Approx. 3mm / 0.1in
Optical Axis Diameter: Approx. 3mm / 0.1in
Screw Pitch: Approx. 0.5mm / 0.02in
Step Angle: 18°
Phase Resistance: 15.5 ohms
Overall Size: Approx. 105 x 15 x 18mm / 4.1 x 0.6 x 0.7in

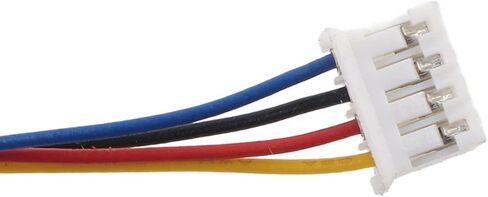

Blue: A+, Black: A-, Red: B+, Yellow: B-

Note:
Note that it is a stepper motor, does not turn when directly connected to the power, a stepper motor driver board and control board are required.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
