Specification:

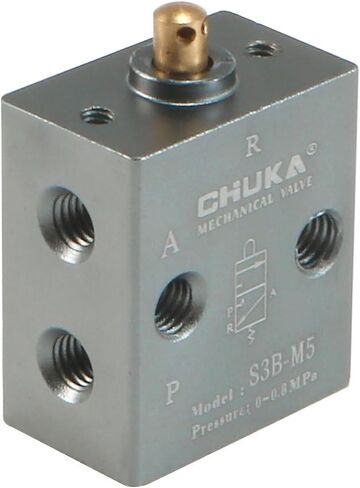

Product Name : Mechanical Valve
Model: S3B-M5
Weight: 38g
Color : Silver Tone
CV values: 2.5mm2
Button Type : Handle
Number of Position : 2
Joint Pipe Size: M5
Control Type : Extenal Control
Mounting hole Size :4.5mm / 0.18"
Seal material: NBR
Main parts material: Aluminum alloy
Working pressure: 0~0.8mpa
Operating temperature: -5~60 Degree Celsius
Total Size : 35 x 26 x 16mm /1.38" x 1.02" x 0.63" (L x W x H)

Package Included:1 x Solenoid Valve

Description:
1.It adopts pure aluminum valve body, fully automatic machining center processing, surface frosting treatment, strong wear resistance and long service life.
2.The stem sealing ring has strong air tightness, good insulation, corrosion resistance, heat resistance and is suitable for a wide range of applications.
3.The inside of the valve body is smooth and burrfree, smooth and easy to use, and has a long life.
4.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
