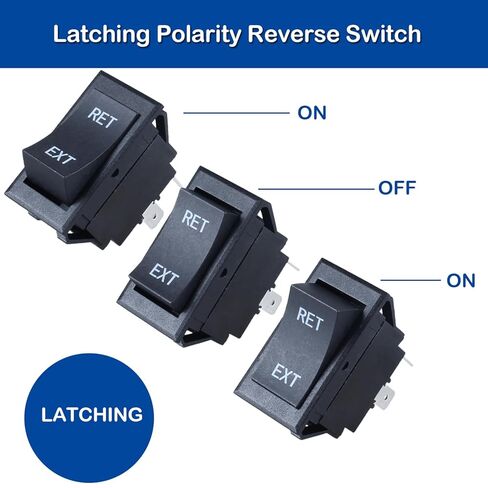

Reversing Polarity Rocker Switch, Latching Switch 30A 12V DC 4pin DPDT 3Position self-Locking Toggle Switch with Pre-Wires (1Pc)

KWD 4.500
Brand
DMWD
Weight
40 g
Color4pin
SizeLatching
Number of Items1
– 1 +

Special Features

  • [Features]: Double Pole Double Throw(DPDT) contact type, self-locking action Switch, 4pin terminals, black button, on off on snap in rocker switch.
  • [Product Basic Parameters]: 15A 250V AC/ 30A 12V DC, Contact Resistance: 50mΩ Max, Material: Plastic, Brass
  • [Product Size]: 44x24x46mm/1.73"x0.94"x1.81"(L*W*H). Wires length: 20cm/7.87". Mounting Hole Size:42mm x 21mm / 1.65"x 0.83"(L * W
  • [Wide Application]: This polarity reversing switch replacement for most RV/trailer power tongue Jacks wheel.switch comes with jumper bars for polarity reversing,connect power and ground and two DC motor leads and the switch will reverse the motor direction.
  • [What you got]: 1pc rocker switch + Connect jumper wires. We will reply within 24 hours if you have any questions about this product by email
