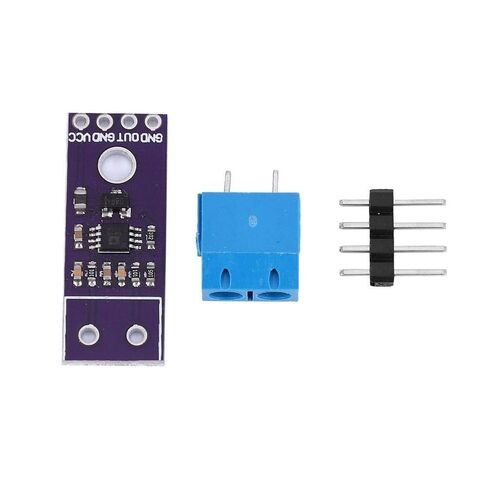

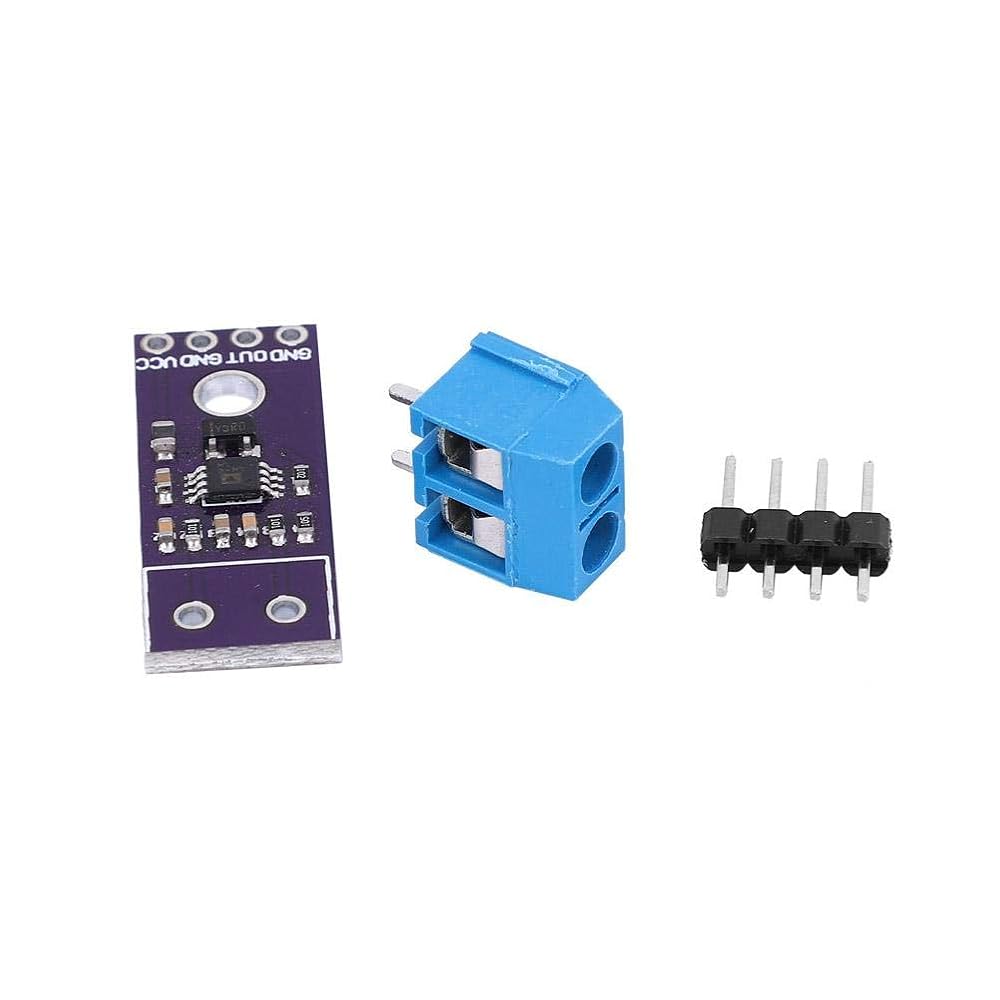

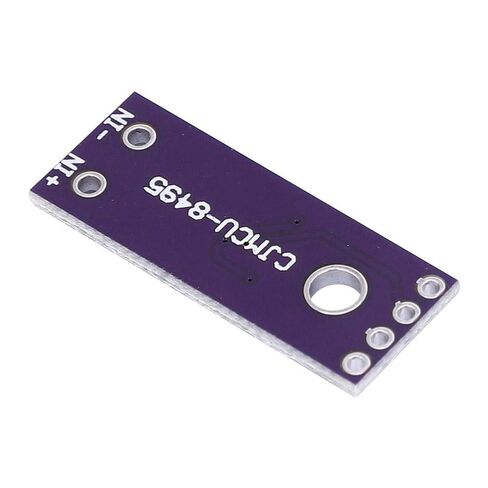

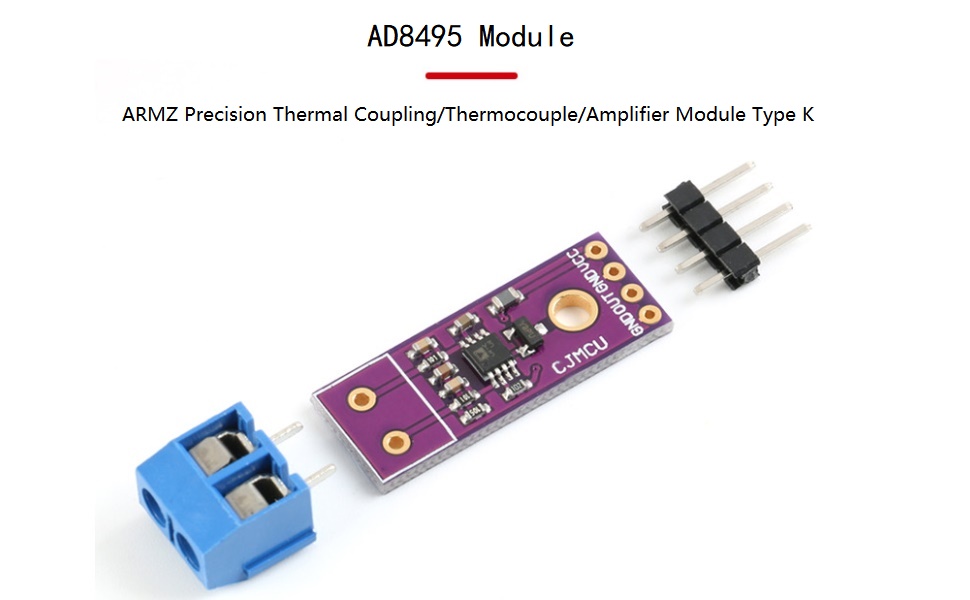

WIDE APPLICATION-- Thermocouple analog output module is suitable for J or K type thermocouple, ideal for oven temperature measurement, exhaust gas temperature detection, and more

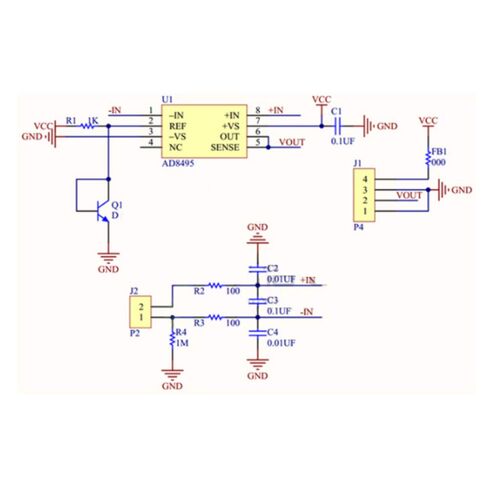

EASY OPERATION-- AD8495 thermocouple amplifier can convert the small voltage generated by the thermocouple junction into that analog-to-digital converter (ADC) or microcontroller for easy reading. The gain from the thermocouple to the amplifier output is approximately 5 mV/°C.
GOOD PERFORMANCE-- AD8495 can be used to measure negative temperature whatever the power rails are. It can uses voltage on reference pin to adjust the 0℃.
LOW NOISE-- The amplifier module features low noise, duo to its high common-mode rejection performance that can suppress common mode noise that long thermocouples may pick up.
POWERFUL-- AD8495 supports wide supply voltage range and can be used in high voltage supply. Under a single 5V pwoer supply, AD8495 can cover nearly 1,000℃ thermocouple temperature range. Under 3V power supply, it can be directly connected to low supply voltage ADC interface. It can also be power by up to ± 18V power supply, support industrial system that require wide common mode input range.
