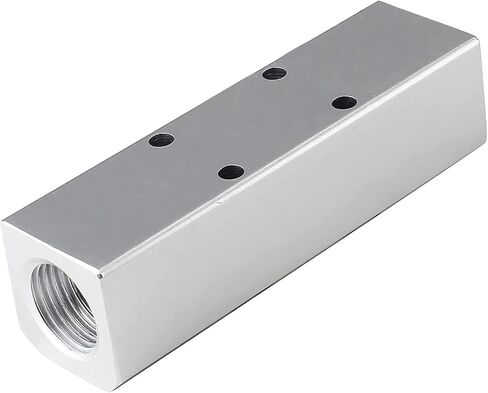

XMHF 3 Way Pneumatic Manifold Air Distribution Block, Compressed Air Manifold Pneumatic Block, Air Coupler Fast Connector for Pneumatic Air Compressor

KWD 5
Brand
XMHF
Category
Fittings
Weight
190 g
– 1 +

Special Features

  • Package Content: 1 x 3 Way Pneumatic Manifold Air Distribution Block
  • Two G1/2" inlet ports and two G1/4" outlet ports. High pressure resistance and strong sealing.
  • The air manifold is made of aluminum alloy, which is highly corrosion-resistant, not easy to deform, durable and lighter than other material. The ports are based on standard size for easy mounting.
  • Our air manifolds are all designed with NPT threads instead of PT threads or G threads, so the fit is tighter, no air leakage and easy to mount. Each port is well arranged for enough space.
  • Widely used for air compressor, cylinder, vacuum engine and other similar system, or used as supporting parts of machine equipment.

Description

Specifications:
Material: Aluminum Alloy
Type: 3 Way 5 Port
Inlet Port Diameter: G1/2 (20mm/0.78”)
Outlet Port Diameter: G1/4 (12.5mm/0.49”)
Total Length: 107mm/4.21”
Width: 30mm/1.18”
Height: 30mm/1.18”
Mounting Port Diameter: 5.2mm/0.2”
Outlet Port Center Distance: 32mm/1.25”
Mounting Port Center Distance: 20.5mm/0.8”

Package Content:
1 x 3 Way Air Distribution Block
