Flexible Coil Current Transformer - , Wide Measurement Range, High Accuracy - ETCR50FA AC Current Sensor Probe Accessory

KWD 11.500
Brand
Hilitand
Category
Sensors
Weight
110 g
– 1 +

Special Features

  • [NON-CONTACT MEASUREMENT] The ETCR50FA Flexible Coil Current Sensor uses advanced Rogowski coil technology to provide safe and reliable non-contact measurement. Its coil part has no exposed metal conductors, ensuring user safety.
  • [VERSATILE APPLICATIONS] This Current Sensor is suitable for a wide range of applications, including electronics industry, power communications, equipment manufacturing, and power grid maintenance. It can detect AC leakage current, large current, high-order harmonic current, complex waveform current, transient inrush current, phase, electric energy, power, power factor, and more.
  • [HIGH PERFORMANCE] The ETCR50FA Flexible Coil Current Sensor features a response frequency of 0.1Hz-1MHz, allowing for accurate measurements. It is designed to withstand electric field interference, ensuring precise results in various environments.
  • [WIDE RANGE AND HIGH ACCURACY] With a long measurement range and high accuracy, this Current Sensor can measure current from milliampereto tens of thousands of amperes. Its almostphase error and no magnetic saturation guarantee precise measurements.
  • [long-lasting AND RELIABLE] Made of ABS material, this Current Sensor is long-lasting and has a long service life. Its compact and lightweight design, along with its soft and flexible coil, makes it suitable for narrow environments and places with dense cables.

Description

Spec:

Item Type: Current Sensor
Material: ABS
Model: ETCR50FA
Uses: Electronics industry, power communications, equipment manufacturing, power grid maintenance
Function AC leakage current, large current, high-order harmonic current, complex waveform current, transient inrush current, phase, electric energy, power,Power factor and other detection
Detection method Flexible coil CT: The outputis the differentiation of current to time. By integrating the output voltage , it can be truly restored input Current

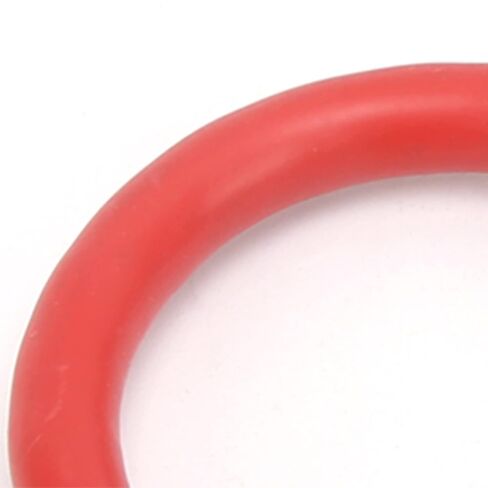

Coil diameter Φ7.5mm
Measuring range 0A～10000A～higher
Resolution 10mA
Accuracy grade ±1.0%FS (50Hz/60Hz: 23℃±2℃, below 70%, the wire is at the center of the coil)
Phase error ≤0.1°(50Hz/60Hz: 23℃±2℃)
Output interface 3.5mm audio frequency plug/BNC plug/tap (optional), cable length 2M
Electric field interference No hysteresis effect,from external electric field interference
Wire position The wire to be tested is at the center of the coil, and the position error affects ≤±0.3%FS
Current frequency 45Hz～70Hz (frequency of measured current)
Response frequency 0.1Hz～1MHz

Package List:
1 x Current Sensor

How To Use:
1. Connect the transformer to the test instrument
2. According to the instrument manual, carry out instrument debugging and adjust the instrument to the mode that needs to be tested
3. Take out the circuit to be tested and put it in the coil
4. Start the test and get the reading
5. Observe the instrument reading and record the data content (http://www.etcrmeter.com/product/info?id=1228)
