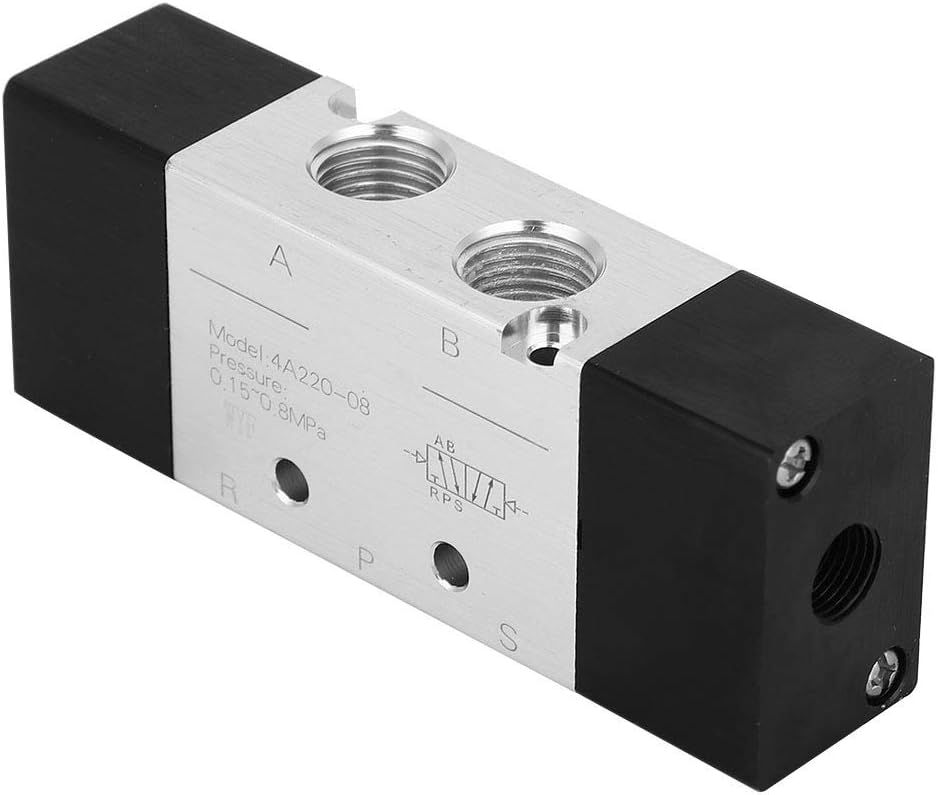

5 Way Pneumatic Air Control Valve 2 Position Operated Valve Inlet/Outlet PT1/4in 4A220-08,Manual Valve

KWD 6
Brand
Garosa
Category
Fittings
Weight
162 g
– 1 +

Special Features

  • Easy to Use: Professional and reasonable structure, easy to install and use.
  • Material: Made of high quality material, durable and long service life.
  • Size of Interface: The air inlet/air outlet diameter is PT1/4in, the exhaust diameter is PT1/8in.
  • Good Performance: This valve has good wear resistance and pressure resistance.
  • Application: Suitable for mechanical equipment, textile equipment and food processing.

Description

Specification:
Condition: 100% Brand new
Model: 4A220-08
Working Medium: Air
Mode of Operation: External air control
Use Pressure: 0.15-0.8Mpa
Maximum Pressure Resistance: 1.0Mpa
Connecting Diameter: Air inlet = air outlet =PT1/4in, exhaust=PT1/8in
Effective Sectional Area: 16mm² (Cv=0.89)
Maximum Operating Frequency: 5 times / sec
Operating Temperature Range: 0~60

Package List:
1 x Valve
