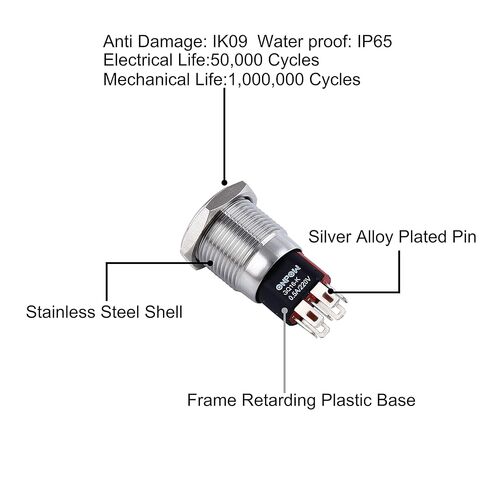

Place of Origin:Zhejiang China Brand Name:ONPOW Model Number:GQ16-KF-10ZE/J/RGB/12V/S Product Name:IP 65 Waterproof tri-color push button switch Shipping Weight: 25g Shipping package:10*10*10cm paper bag Mounting hole diameter:16mm Actuator shape:Flat Round Head Operation type: Latching(Self-lock) Contact structure:41common cathode/42 common anode Material:stainless steel Illuminated type:Ring LED LED Voltage:12V Led Color:Red+Green+Blue Mechanical Life:1000,000 cycles Electrical Life: 50,000 cycles Terminal:4 pin terminals Terminal Type:Pin Terminal(2×0.5mm) Operating Temperature:-25℃~+55℃(no freezing) keep the air flowing around illuminated pushbutton Operating Humidity：45~85％RH(no condensation) Contact Resistance：≤50mΩ Insulation Resistance：≥1000MΩ Dielectric Strength：1500V,A C50Hz,5 seconds Vibration Resistance：50Hz,Amplitude 1.2mm Shock Resistance:＞10g Solder Heat Resistance：320℃(or 30W soldering iron) no more than 2 seconds) ROHS made to order If you preferred product configuration is not shown,please contact our sales representative for custon design.
