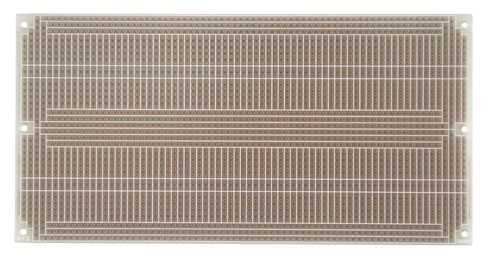

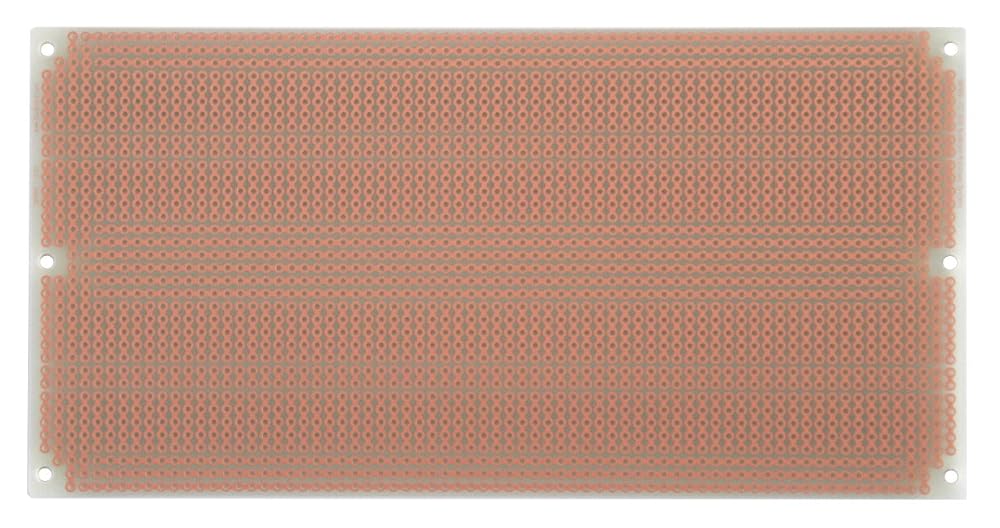

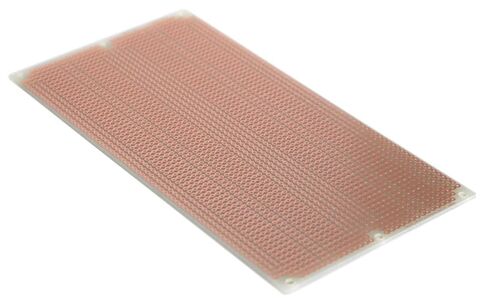

SB1660 Solderable PC BreadBoard, 1 Sided PCB, Matches Double 830 tie-Point BB830 breadboard with Power Rails, 7.25 x 1.85in (184.2 x 47.0mm)

KWD 5.500

1 +

Special Features

  • Same pattern as two standard 830 connection point BB830 solderless plug-in breadboards side-by-side.
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 2528 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers. 6 mounting holes.
  • 3.65 x 7.25in (92.7 x 184.2mm), 1/16" thick (1.6mm)

Description

The SB1660 sold ER able PC breadboard enables you to transfer your circuit and wires from a plugin breadboard without changing your layout. The SB1660 has the same pattern and spacing as two standard 830 connection point BB830 solderless plug-in breadboards side-by-side. It has a standard 5-hole strip for each IC pin, just like solderless breadboards. It provides the reliable long-term connections of soldered joints.
