Motherboard PWM Fan Hub, 1 to 10 Way Splitter Hub, SATAPowered PC Case Motherboard Fan Power Extension Cable Cord for 4-Pin/3-Pin Computer Internal Fans, Magnetic Design

KWD 5.500
Brand
Diyeeni
Category
Fans & Cooling
Weight
80 g
– 1 +

Special Features

  • 10 WAY: ARGB PWM 2 in 1 10 way hub with up to 10 sets of addressable RGB (5V 3pin) plugs and 3pin/4pin PWM plugs, expanding the 10 way 4pin fan and 5v 3pin ARGB connector to solve the problem of cluttered motherboard fan wiring.
  • SIMULTANEOUS EXPANSION: The 10 way 5V RGB splitter hub can expand any 5V addressable RGB product at the same time while occupying only one RGB connector on the motherboard, freeing up more ports for other devices.
  • SATA POWER SUPPLY DIRECT OUTPUT: 2 in 1 PWM ARGB case fan hub adopts SATA power supply direct output, which is more simple, more efficient and more stable.
  • MAGNETIC DESIGN: The hub is designed with super strong magnetism, which can be adsorbed on the metal surfaces of the case and can be placed at will, small and exquisite size to save more space.
  • NOTE: The light can only be turned on when the motherboard supports ARGB. The red port on the hub needs to be connected to the temperature control fan. Other ports can be connected at will. When the other ports are connected to the 3pin fan, the speed will not be synchronized and will run at full speed.

Description

Spec:

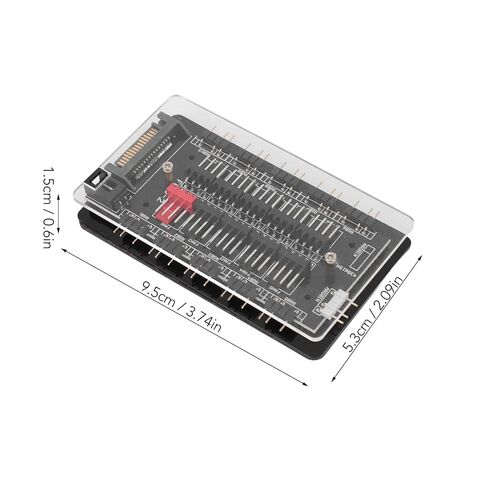

Item Type: ARGB PWM Fan Hub
Material: PCB, Acrylic
Power Supply Interface: SATA
Fan PWM Port: 10 (4Pin)
Lighting Port: 10 (3Pin ARGB)
Lighting Rated Voltage: 5V
Length: Approx. 9.5cm / 3.74in
Thick: Approx. 5.3cm / 2.09in
Width: Approx. 1.5cm / 0.6in
Line Length: Approx. 40cm / 15.75in

How to Use:
Install to use

Package List:
1 x Fan Hub
1 x Motherboard ARGB Cable
1 x Temperature Control Cable
1 x Screwdriver
