Lejin 110V 220V 85V~250V 4CH Wireless Remote Control System Wireless Relay output Switch Receiver 100M-1000M Long Distance Transmitter 220V AC Remote Control Kit - Learning Code

KWD 18.500
Brand
Lejin
Category
Electric Motors
Weight
389 g
– 1 +

Special Features

  • Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
  • Wireless control, easy to install. Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminals are NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to equipments.
  • Wireless RF signal can pass through walls, floors, doors or windows. You can use two or more units in the same place.
  • You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
  • Reliable control: The receiver only works with the transmitter which use same code. One/several transmitters can control one/several receivers simultaneously.

Description

Product Description

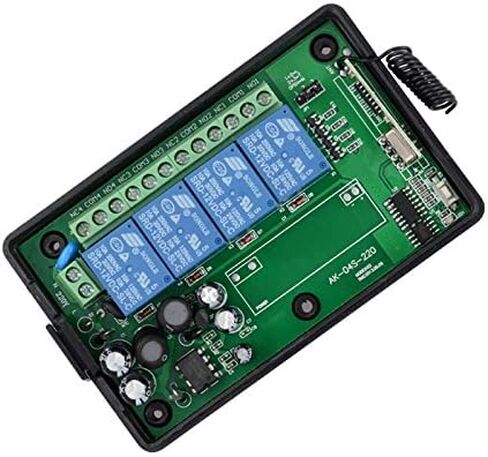

About Receiver:
Channel: 4 CH
Frequency:315MHZ / 433.92MHZ (Standard 433MHz, if you need 315MHz, please tell us)
Operating Voltage:AC85V-260V
Coding Type: learning code
Maximum Working Current: 10A
Output Mode: Without voltage output(also called Contact output)
Step-down approach: resistance-capacitance(RC)
size: 105*66*30mm
About Working way/ output Way:
It is adjusted by the Jumper on the Receiver Board
Jumper non : Momentary/ Jog--Press and hold -> On; Release -> Off.
Jumper on 1&2 :Toggle/ Self-lock--Press -> On; Press again -> Off·
Jumper on 2&3 : Latched/ Interlock--Press -> On; Press other button -> Off.

About Learning and clearing Method:
Learning:
Input 220V for the receiver .LED indicator ON .Press the learning button, The indicator OFF, then please press any buttons of the remote control , The indicator will flash 3 times,It means successfully studied.

Clearning:
Hold press learning button about 8 seconds,,indicator from OFF to ON,then press remote ,receiver did not work ,it means clearning code successful.

Package Include:
1* Receiver (with cover)
2* Remote Control (with battery+433MHz)
