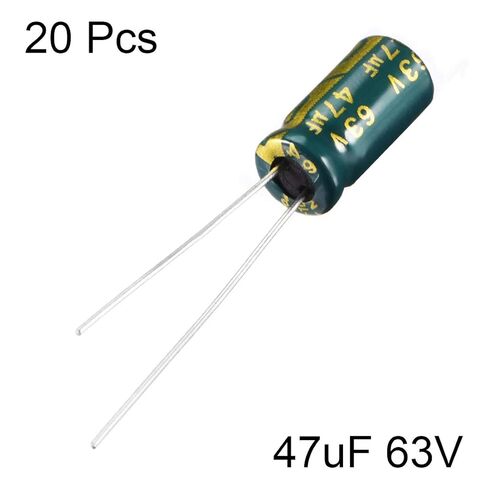

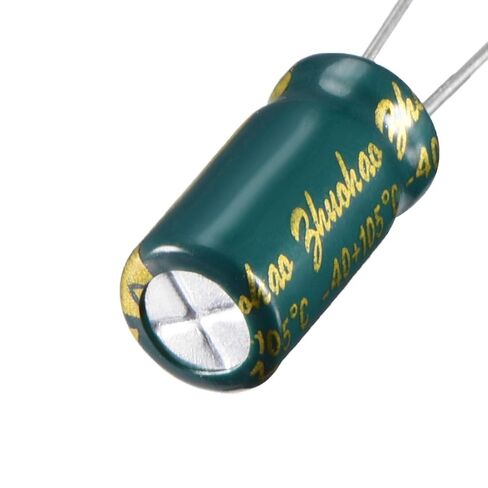

uxcell Aluminum Radial Electrolytic Capacitor Low ESR Green with 47uF 63V 105 Celsius Life 3000H 6.3 x 12 mm High Ripple Current,Low Impedance 20pcs

KWD 3.500

Brand
uxcell
Number of Items20
1 +

Special Features

  • Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
  • Rated Voltage: 63V; Capacitance: 47uF; Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 3000hrssius 100KHz: ;Capacitance Tolerance: ±20%(120Hz,+20 Celsius); Standard Load Life: 3000hrs
  • Body Size:6.3 x 12 mm /0.25" x 0.47"(D*L);Lead Length: 25mm/0.98", 20mm/0.79"; Lead Pitch: 2.5mm/0.098"
  • Application : Widely used in electronics, such as computer motherboard, TV, speaker, digital camera, etc.
  • Package Content : 20x Electrolytic Capacitors

Description

Features:
High Ripple Current,Low Impedance.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.

Notice:
1.Capacitance: Don't change the capacitance.
2.Voltage: You can go higher, but don't go lower.
3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.

Product Name : Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: High Ripple Current,Low Impedance
Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)
Rated Voltage: 63V;
Capacitance: 47uF;
Capacitance Tolerance: ±20%(120Hz,+20 Celsius);
Standard Load Life: 3000hrs
Body Size: 6.3 x 12 mm /0.25" x 0.47"(D*L);
Lead Length: 25mm/0.98", 20mm/0.79";
Lead Pitch : 2.5mm/0.098"
Lead Diameter :0.5mm
Size : 20pcs 47UF 63V 6.3x12mm
Package Content : 20 x Electrolytic Capacitors
