Features:

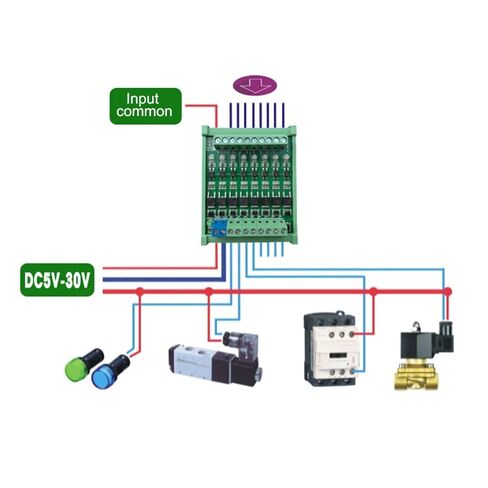

It is a 8-channel PLC amplifier circuit board.It is compatible with positive/negative input modes.Support independent output of each channel,the maximum output capacity can reach 30V,5A.
Specifications:
Input Voltage:DC 3.3V/DC 5V
Input Current:5mA-10mA
Output Current:5A(Max)
Output Voltage:DC 5V-24V
Output Type:non-contact type
Driving Element:P/N channel field effect transistor
Action Time:1ms (Max)
Reset Time:1ms(Max)
Switching Frequency:2000Hz(Max)
Output Property:NPN output
Work Temperature:-25℃~85℃
Work Humidity:5%~95%RH
Size:87*47*39mm
Package List:
1 X 8-Channel PLC Amplifier Circuit Board
Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow 1-2cm slight dimension difference due to different manual measurement.
