Lora32 V3 Kit ESP32 S3 WiFi+BT Development Board 0.96inch OLED Display SX1262 CP2102 with 915MHZ Antenna Transceiver for Arduino
Feasture:
ESP32-S3FN8 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz.
SX1262 LoRa node chip.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding etc.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, -USB / battery power automatic switching).
Integrated WiFi, LoRa, BLE three network connections, onboard Wi-Fi, BlE dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa use.
Onboard 0.96-inch 128*64 dot matrix OLED display to display debugging information, battery power etc.

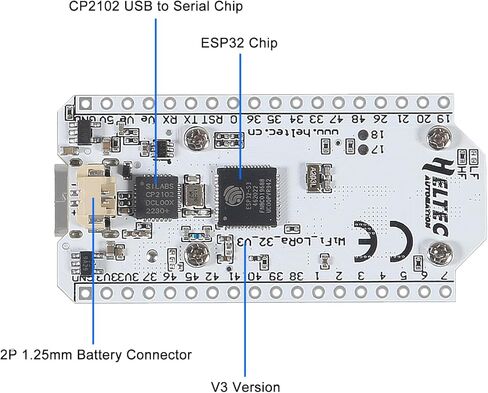

Integrated CP2102 TPYE-C USB to serial port chip, convenient for program downloading, and debugging information printing.

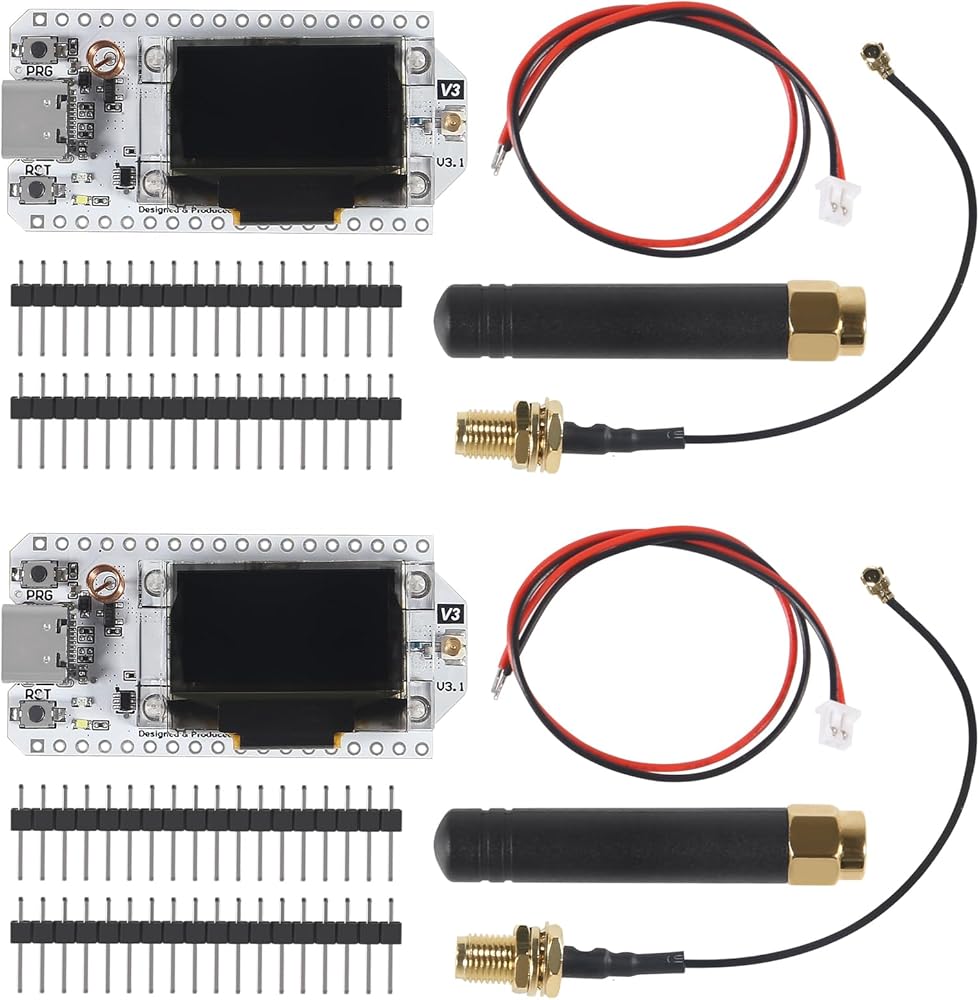

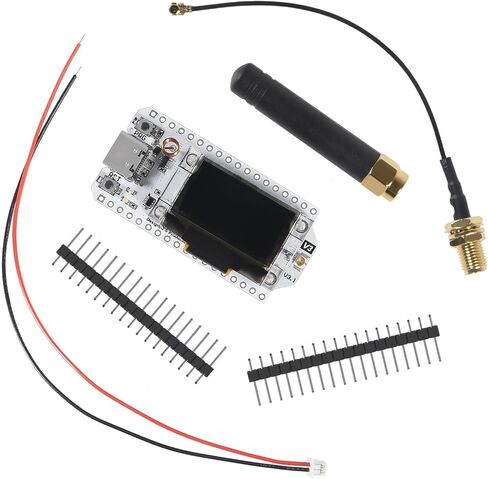

Package Included:
2 x WiFi LoRa 32 V3 board
2 x 1.25mm 2pin cable
2 x lora antenna 863 928 915 universal
