Special Features

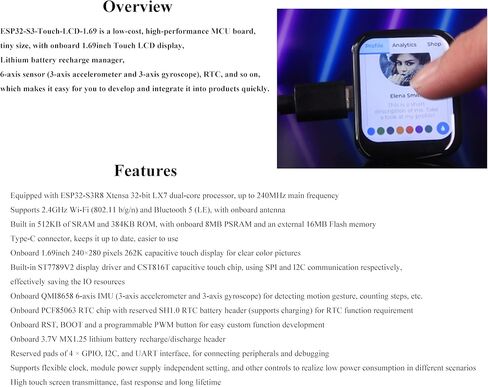

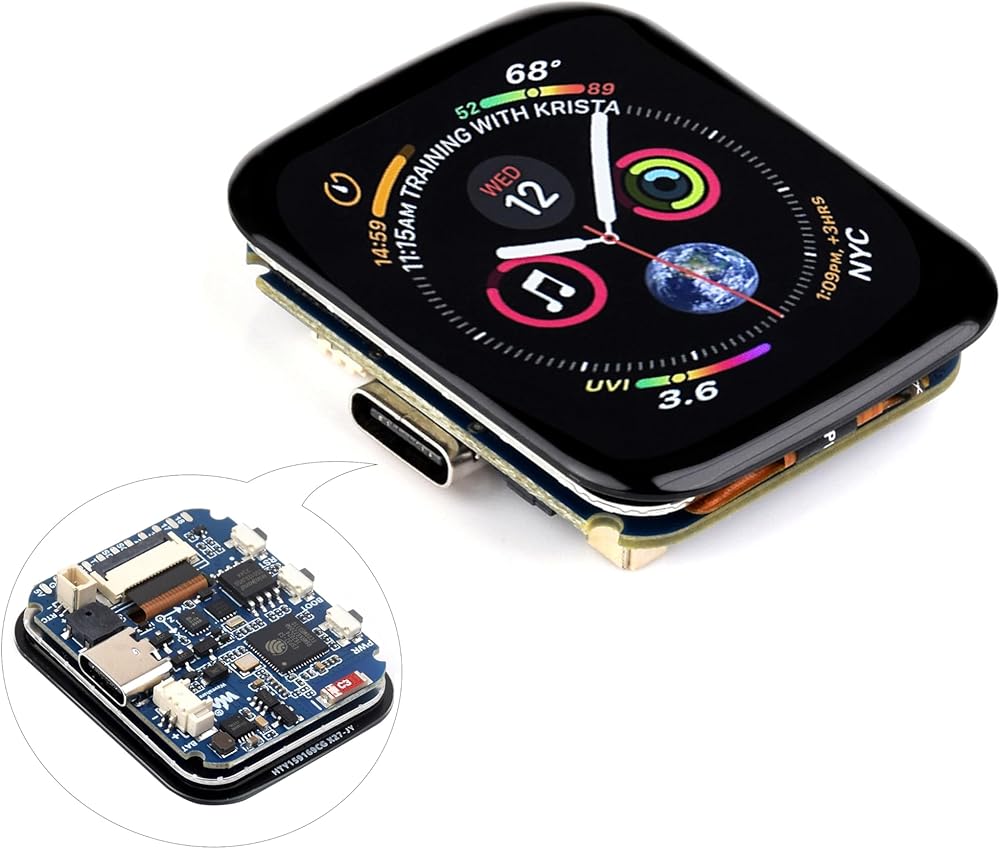

ESP32-S3-Touch-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, tiny size.with onboard 1.69inch LCD display, Li-th-ium ba-tte-ry recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, and so on, which makes it easy for you to develop and integrate it into products quickly
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory

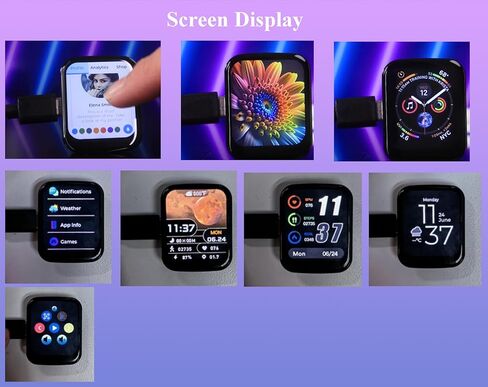

Onboard 1.69inch 240×280 pixels 262K capacitive touch display for clear color pictures
Built-in ST7789V2 display driver and CST816T capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement. Onboard RST, BOOT and a programmable PWM button for easy custom function development

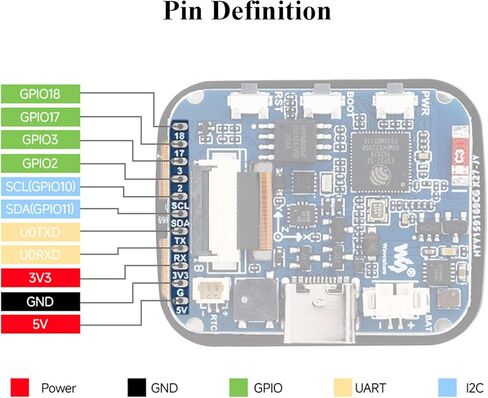

Onboard 3.7V MX1.25 lith-iu-m ba-tte-ry recharge/discharge header. Reserved pads of 4 × GPIO, I2C, and UART interface, for connecting peripherals and debugging
Comes with Online Development Resources /User Manual: bit.ly/3QKw5Mv
