Features

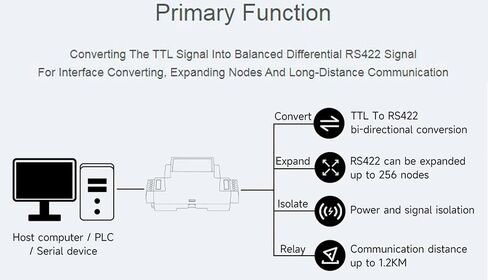

Compatible with TTL/RS422 standard, converting the TTL signal into differential RS422 signal, support full duplex communication
Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

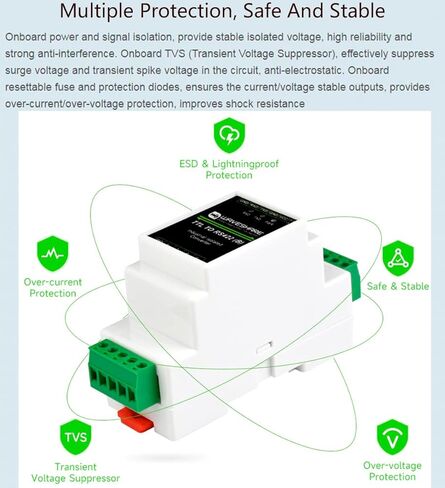

Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance

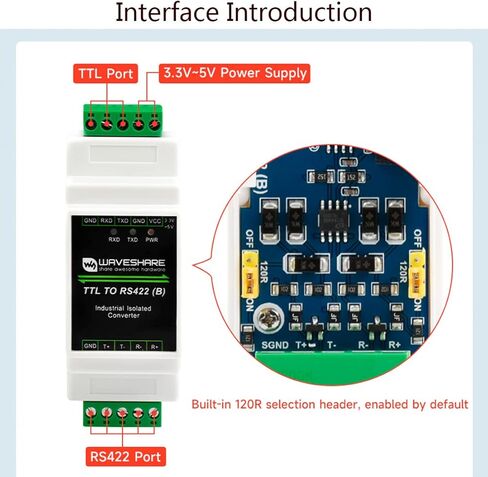

Onboard RS422 input and output terminal 120R resistor, enabled/disabled via jumper

Specifications

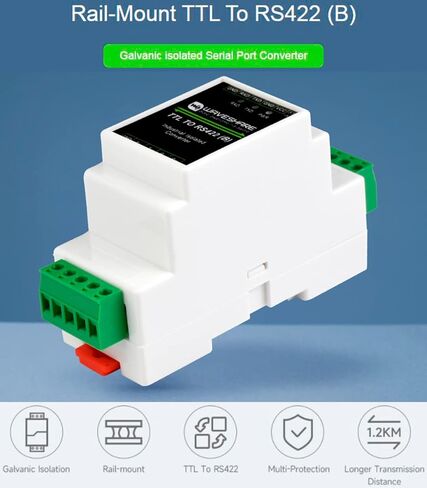

Product Type: Galvanic isolated TTL to RS422 converter
Device Port: TTL/RS422 standard compatible
Power supply interface
Power supply: 3.3V ~ 5V
Protection: over-voltage, reverse-proof

TTL
Connector: screw terminal
Transmission distance: about 10m
Transmission mode: point-to-point

RS422
Connector: screw terminal
Protection: surge-suppress and 15KV ESD protection
Terminal resistor: 120R, enabled/disabled via jumper (inside the case)
Transmission Distance: About 1.2km
Transmission Mode: full duplex mode, point-to-multipoint (up to 256 nodes, it is recommended to use repeaters for 16 nodes or more)

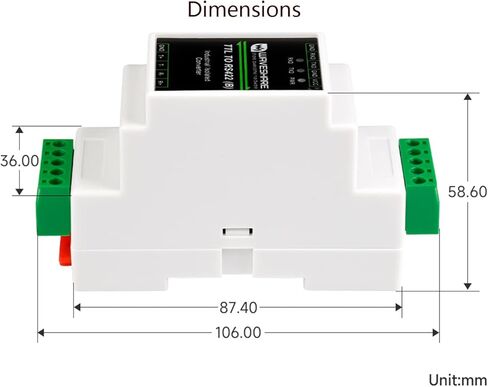

Dimensions: 106.0 × 58.6 × 36.0mm

Development Resource/ How-to-use: n9.cl/box9g

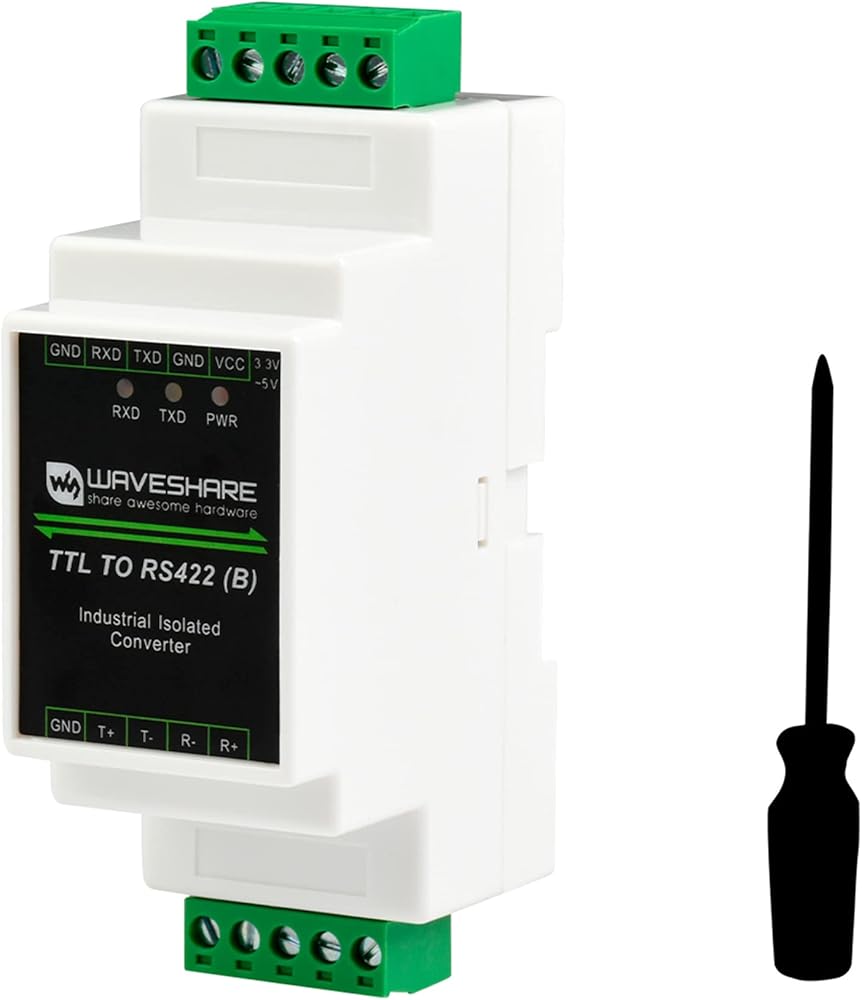

Package Content
TTL TO RS422 (B) x1
Screwdriver x1
