Overview

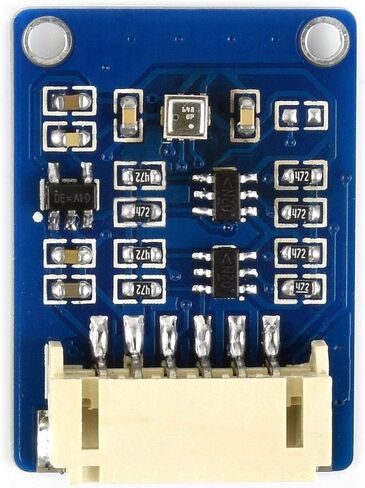

A tiny sensor breakout with onboard, sensing environmental temperature, humidity, and barometric pressure. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.
Due to its ultra small form factor, low power consumption, high precision with stability, the Environmental Sensor is suited for applications such as environment monitoring, weather forecast, altimeter, and IoT projects, and so on.

Features

Supports I2C (default), configurable slave address
Supports SPI, switch to SPI via I/O setting
Onboard voltage level translator, compatible with 3.3V/5V operating voltage
Comes with development resources and manual (examples for Raspberry Pi/ /STM32)

Specifications

Operating voltage: 3.3V/5V
Communication interface: I2C/SPI
Temperature sensing: -40~85°C (resolution 0.01°C, accuracy ±1°C)
Humidity sensing: 0~100%RH (resolution 0.008%RH, accuracy ±3%RH, response time 1s, delay ≤2%RH)
Barometric pressure sensing: 300~1100 hPa (resolution 0.18Pa, accuracy ±1hPa)
Power consumption: Dimension: 27mm x 20mm
Mounting hole size: 2.0mm
