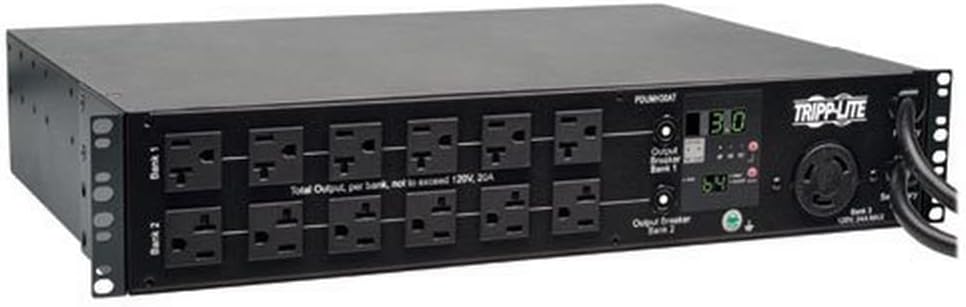

PDUMH30AT Metered ATS/Auto-Transfer Switch offers 120V 30A dual-input power distribution and visual current metering in a 2U horizontal rack mount installation format. Set of two NEMA L5-30P line cords enable separate primary and secondary input connections. Includes 25 built-in outputs (24 NEMA 5-15/20R and 1 L5-30R). Digital current metering with push-button display control tracks output power consumption in 4 segments: Bank 1 (12 upper 5-15/20R outlets), Bank 2 (12 lower 5-15/20R outlets), L5-30R (single outlet) and total PDU output. Supports 2U installation in 2 or 4 post racks, with additional support for wall-mount and under-counter placement.

Do you need an efficient, reliable way to distribute, monitor and manage power in an IT or industrial environment? Tripp Lite's PDUMH30AT Metered Power Distribution Unit with ATS is the solution you seek! It provides 25 outlets (24 x 5-15/20R, 1 x L5-30R) arranged in two separately breakered load banks, plus a digital meter that displays continuous power consumption, enabling IT personnel to monitor the PDU's load on site. Optional integrated automatic transfer switching capability enables dual AC input redundancy for critical network hardware, hot-swappable UPS maintenance bypass or dual UPS protection. The PDUMH30AT features an all-metal housing and dual locking L5-30P inputs. It is suitable for 2U rackmount installation as well as wall-mount, workbench, under-counter and similar installations.
Key FeaturesPDUMH30AT Metered Power Distribution Unit Offers:Automatic transfer switching (ATS) to provide a redundant power option
Digital meter for on-site monitoring of total PDU load
Dual L5-30P inputs enable primary and secondary input options
Configurable for 2U rackmount installation
2-year warranty
Optimized for Demanding Applications
Integrated Auto-Transfer Switching & Hot-Swap Capability
Optimized for Demanding ApplicationsThe PDUMH30AT is designed for reliable distribution of AC power to supported equipment in IT, industrial and similar applications. It features a rugged all-metal case, high-quality outlets, a 30A circuit breaker and a switchless design to prevent accidental shutoff. Auto-Transfer Switching function adds hot-swap and maintenance bypass ability to standard UPS configurations.
Reliable IT Power DistributionUnfiltered electrical pass-through makes the PDUMH30AT ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. It provides twenty-six outlets (25 x 5-15/20R, 1 x L5-30R) and dual 12-ft. with locking L5-30P plugs to prevent accidental disconnection.
Integrated Auto-Transfer Switching & Hot-Swap CapabilityThe PDUMH30AT features optional integrated automatic transfer switching (ATS) capability to provide a redundant power option for networking and server applications with non-redundant internal power supplies. In ATS mode, the primary power cord delivers primary input power and the secondary power cord provides secondary input power. If primary power becomes unstable or fails, the PDU automatically switches to the secondary power source. Additionally, ATS enables fault-tolerant hot-swappable UPS protection when used with a single UPS system, and fully redundant UPS protection when each power cord is connected to a separate UPS system. Front-panel input LEDs indicate primary or secondary power availability.
Digital Current MeterAssure proper load balance with the PDUMH30AT's easy to read, two-character digital LED meter that displays the total connected equipment load. This meter enables IT personnel to monitor the total load on the PDU in real time, allowing more equipment to be safely connected with no danger of overloading the PDU or power supply circuits. Plus, the outlets are factory programmed for sequential turn-on when the PDU is first powered on to prevent inrush-related equipment interaction on start-up and safeguard against costly overloads.
Digital Current Meter
Versatile Installation OptionsThe PDUMH30AT is easy to integrate with a wide range of data center and network applications. It is suitable for 2U installation in standard 19-inch rack enclosures as well as wall-mount, workbench, under-counter and similar installations.
Switchless DesignThe PDUMH30AT's switchless design prevents accidental shutoff and safeguards against downtime due to human error. The L5-30P plug locks into place to maintain a secure connection.
Peace of MindThe PDUMH30AT comes with a 2-year warranty.
Technical SpecificationsTripp Lite PDUMH30AT Metered Power Distribution Unit with ATS Model: PDUMH30AT Voltage compatibility: 120 V (AC) Frequency compatibility: 60 Hz Amps: 30 Outlet quantity/type: 24 x 5-15/20R, 1 x L5-30R Input cord/plug: 2 x 12 ft./L5-30P LED display: 2-character (indicating amps) Dimensions (HWD): 3.5 x 17.5 x 12.5 in. (2U) Weight: 13.8 lb Material of construction: Metal Agency approvals: UL 60950-1 (US/Canada)
FCC Class A
NOM (Mexico)

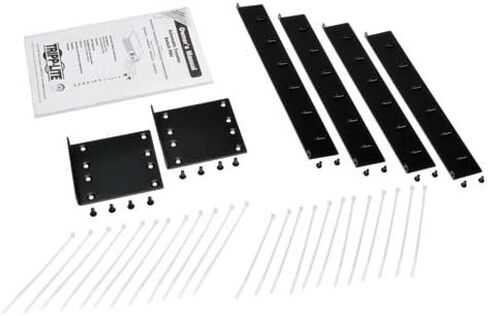

RoHS Warranty: 2 years What's in the BoxPDUMH30AT Power Distribution Unit
Mounting Hardware
Installable Plug-retention Shelves & Cable Ties
Owner's Manual with Warranty Information
