Specification:

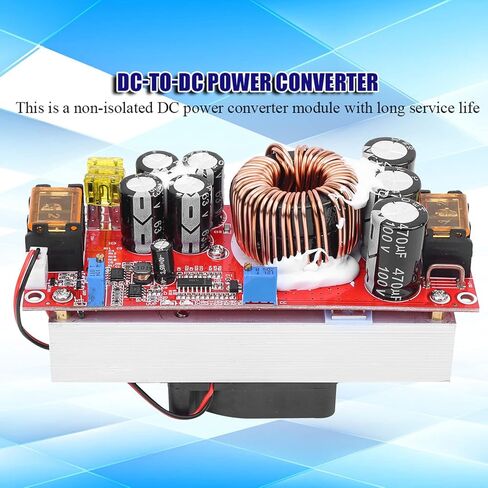

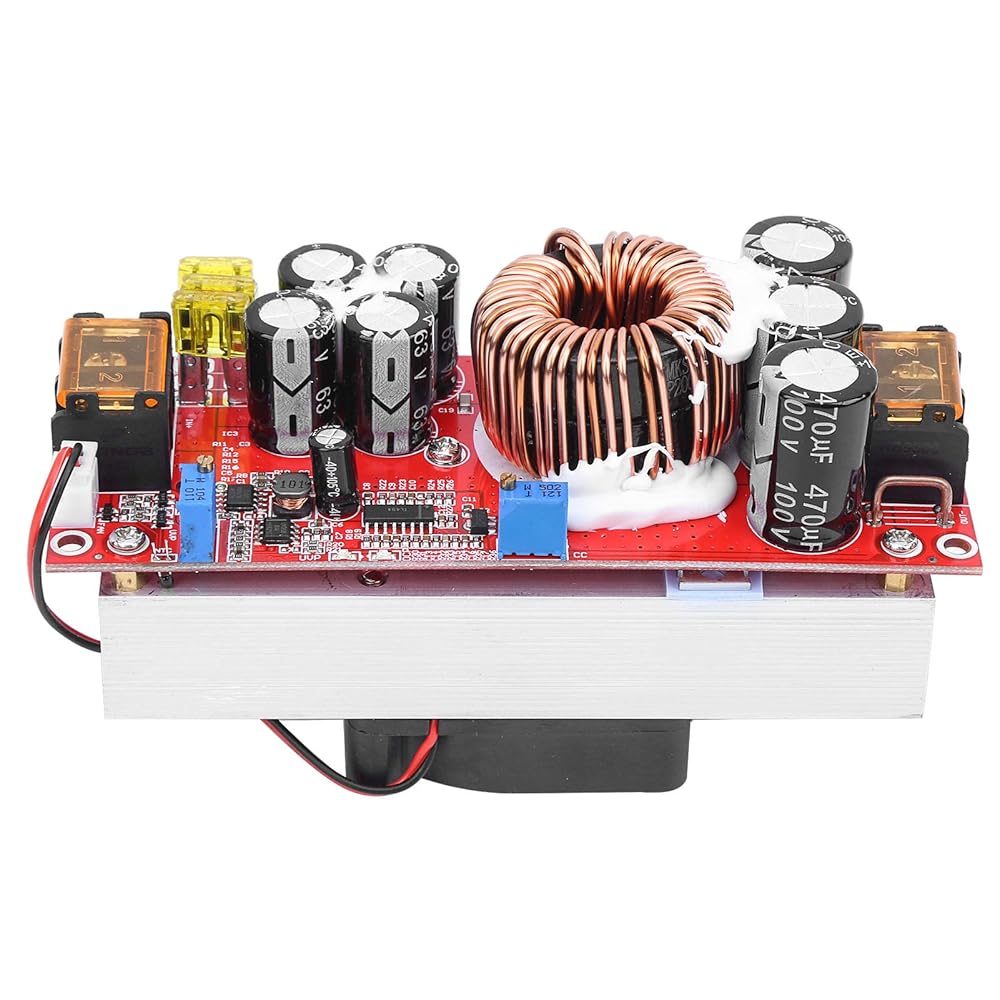

Type: Non‑isolated step‑up module (BOOST)
Input Voltage: DC10V to 60V
Input Current: 10V‑30V input voltage, maximum current is 35A‑40A; 31‑60V input voltage, maximum current is 30A‑35A
Quiescent Current: 15mA(when convert 12V to 20V, higher output voltage will increase quiescent current)
Output Voltage: 12‑97V continuously adjustable (cannot be used to step down voltage)

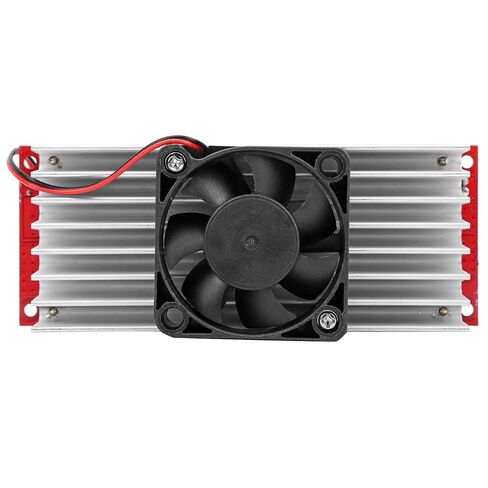

Output Current: 22A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
Constant Current Range: 0.8‑22A(+/‑0.3A)
Reverse Input : Yes (150A power MOS reverse )
Input Low Voltage : Yes (10V‑50V adjustable, self‑recovery)
Operating Temperature: ‑40℃ to 85℃(if temperature is too high, please enhance heat dissipation)
Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over Current : Yes (automatically when input is more than 40A, and power supply voltage will not increase)
Short Circuit : Yes (input 60A ) please operate carefully, try not to cause short circuit.
Reverse Input : Yes ((150A power MOS tube, can be connected reversely for long time)
Installation Method: Four 3mm standoffs
Wiring Method: Terminal blocks (Please use large current copper wire)
Output Power: Maximum Output Power = Input Voltage*30A(If input 12V, the maximum output power=12V*30A = 360W)
(If input 24V, the maximum output power=24V*30A = 720W)
