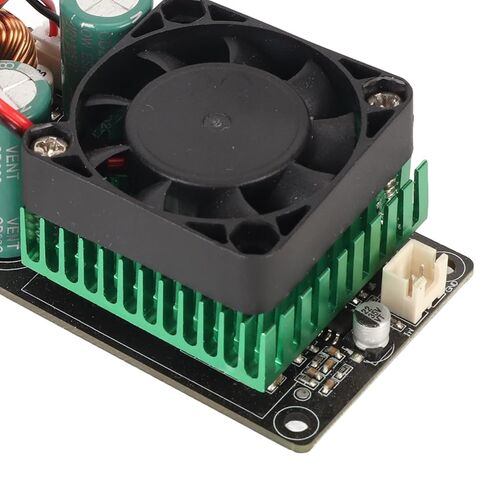

500W Power Amplifier Board, HiFi Single Channel Class D Sound Amplifier Module, Mono Audio Power Amp Speaker Circuit Protection Board for DIY Sound System

KWD 9.500
Brand
ASHATA
Category
Home Theater
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Unique Design: Digital amplifier board: can turn on the delay, turn off the instantaneous break, effectively solve the switch on and off the shock sound.
  • Professional Manufacturing: It is a 500W class D sound amplifier, mainly used in home theater and with speakers.
  • Circuit Optimization: Single channel class d sound amplifier board adopts circuit optimization and adds speaker relay protection.
  • Premium Material: Single channel class d sound amplifier board using PCB material, high density, safe and reliable, aging resistance.
  • Relay Power Supply: Digital stereo power amp module with its own relay power supply, external 110V 220V AC can be.

Description

Specification:
Item Type: Digital Power Amplifier Board
Material: PCB
Power Amplifier Plate Size: Approx. 105x43x28mm / 4.13x1.69x1.10in
Supply Voltage: Dual DC Power Supply ± 45 - ± 70V (Recommended +-65V Power Supply Can Be)
Rated Output Power: 500W (±65V Power Supply 4 Ohm Load, Distortion 1%)
Efficiency: >= 90%
SNR: 90db
Total Harmonic Distortion:
380W (±70 Powered 4 Ohm Speaker, Distortion 280W (±70 Powered 8 Ohm Speaker, Distortion Frequency Response Range: 20Hz-20KHz
Horn: 4-8Ω
Voltage Amplification: 50 Times
Input Sensitivity 1V (RMS)
Output DC Bias Protection I.E. Horn Protection: Yes

How to Use:
After installation, you can use it.

packing list:
1 x Digital Power Amplifier Board

Notice:
Please allow some error in manual measurement.
