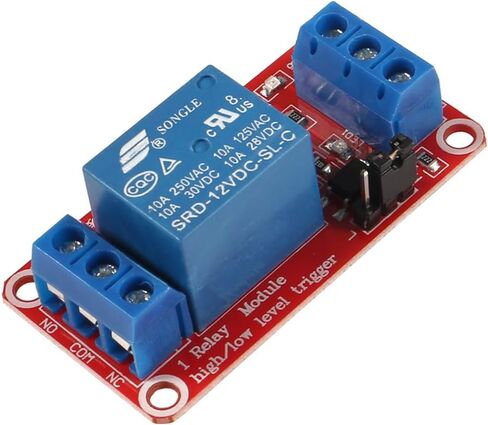

5Pcs DC 12V 1 Channel Relay Module Board Shield with Optocoupler Isolation Support High or Low Level Compatible Development Board Trigger

KWD 3.500
Brand
AOICRIE
Weight
68 g
Color12V
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • This Relay Board Maximum load: AC 250V/10A, DC 30V/10A With power and relay action indicator.each relay has normally open and normally closed contact. Can be selected by jumper relay and TTL or ground.
  • Main Specification Peak Load of NO Connector: AC 250V/10A, DC 30V/10A; Trigger Current: 5mA; The Module Operating Voltage:5V.
  • These Relay Board use photocoupler isolation that has strong driving ability and stable performance.The isolation circuit prevent damages to I / O port by relay switch current.The module has a jumper so you can set rather the unit state changes with high or low signal. Has screw terminals for relay (NC,C,NO) and for input; Coil +, coil - and trigger.
  • Using SMD optocoupler isolation, strong driving capability, stable performance.Fault tolerant design, even if the control line is broken, the relay will not operate; And interface design humanized, all the interface can be directly connected through the terminal lead, so convenient.
  • Wide Application These 5V relay board works well with for ARM /PIC /AVR /MCU/Raspberry/CNC machine /etc.

Description

Product description
Size:1 Channel
Specifications:
Voltage: DC 5V
Working Current: 65mA
Trigger Current: 3mA
Load Current: 10A max
Single Socket Length: 7.5mm
Response Time: The module uses genuine quality relay, normally open interfaces
Maximum load: AC 250V/10A, DC 30V/10A
SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA
The module voltage 5V
The module can be set high or low triggered by jumper
Fault-tolerant design, even if the control line is broken, the relay will not operate
Power indicator (green), relay state indicator (red)
Interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
Power Interface：
DC +: positive power supply (voltage by relay requirements, 5V.9V.12V and 24V selection)
DC-: negative one
IN: can be high or low level control relay
Load Interface:
NO: normally open relay interfaces, relay before hanging, pull back and COM short-circuited
COM: Relay Common Interface
NC: normally closed relay interfaces, relay and COM short-circuited before, after the pull-vacan
Package including:
5 x DC 5v 1 Channel Module Board
