Waveshare RP2040-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor, USB Port
Adapter Board Optional

Overview

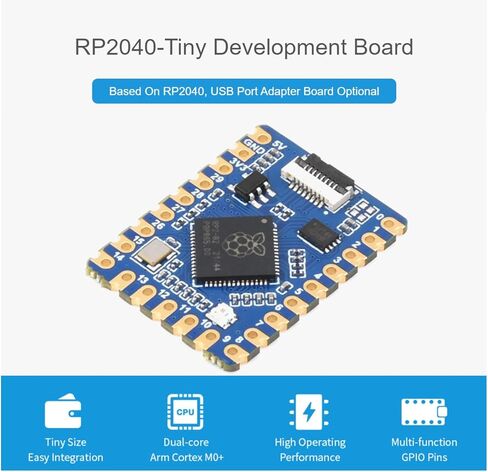

RP2040-Tiny micro development board, using the RP2040 developed by Raspberry Pi as the core.
With a separate adapter board design, USB and keypad circuits can be separated, reducing the overall thickness and size of the PCB and making it easier for
users to integrate into their projects.
The separate adapter board design, compact size, and very thin thickness make this board ideal for projects requiring a small size.
Whether you are a beginner or an experienced developer, it is a great choice for your next project.

Features
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.
264KB of SRAM, and 2MB of onboard Flash memory.
Onboard FPC 8PIN connector, adapting USB Type-C port via an adapter board.
Castellated module allows soldering directly to carrier boards.
USB 1.1 with device and host support.
Low-power sleep and dormant modes.
Drag-and-drop programming using mass storage over USB
20 × multi-function GPIO pins.
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels.
Accurate clock and timer on-chip.
Temperature sensor.
Accelerated floating-point libraries on-chip.
8 × Programmable I/O (PIO) state machines for custom peripheral support.

Package Content
RP2040-Tiny x1
OPTIONS RP2040-Tiny-Adapter x1
OPTIONS 8PIN FPC cable ~15cm x1

Note
Development Resources is provided , please contact us if you have any problem .
