How to Use:
1. Switch display of three groups of temperature values:
In the initial state, press MODE to switch the display of the three groups of temperature values. The sequence of switching is: CPU→HDD→SYS→CPU→……
2. Turn on and turn off the alarm clock function:
In the initial state, press ALARM C/F to start and close the alarm clock function
3. Full screen display:
In the initial state, press and hold SPEED for 3 seconds to display, and all patterns will be displayed.
4. Fan adjustment:
In the initial state, click SPEED once to set the low speed of the fan → click SPEED twice to set the middle speed of the fan → click SPEED three times to set the high speed of the fan (outside the CPU fan).

Specification:

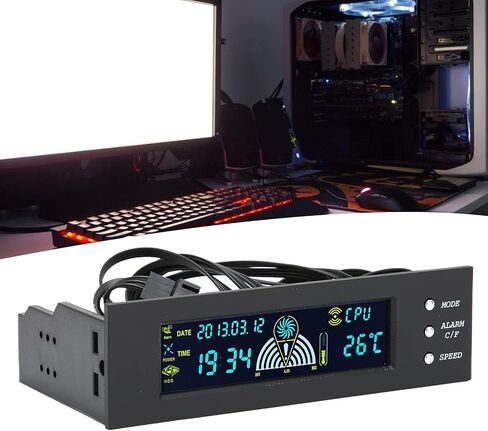

Item Type: Computer Fan Controller
Material: ABS and Printed Circuit Board
Model: 33C03-RTK
Installation Position: Chassis Optical Drive Position
Power Supply Interface: Large 4 Pin Interface
Fan Interface: 3 Pin Interface
Controllable Fan: Can Control 3 Groups of Fans
Cable Length: Approx. 60cm / 23.62in
Luminous Color: Colorful
Input Voltage: 5V/12V
Output Voltage: 5V-12v
Power: 10W

Package List:
1 x Front Panel
4 x Screw
1 x Sticker
