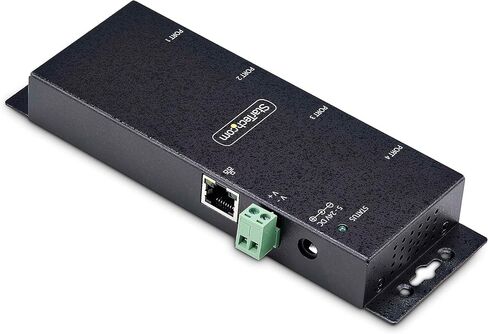

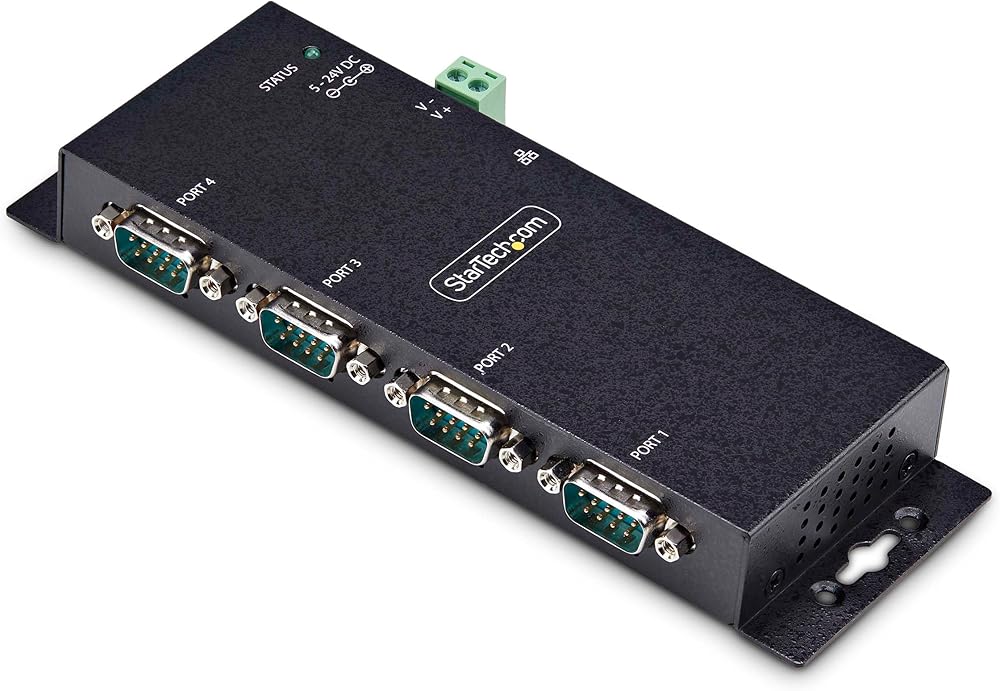

StarTech.com 4-Port Serial to Ethernet Adapter, IP Serial Device Server for Remote RS232 Devices, Wall/DIN Rail, LAN to DB9, TAA

KWD 148.500
KWD 157
Brand
StarTech.com
Category
Device Servers
Weight
0.6 kg
Style4-Port
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • SERIAL TO IP CONVERTER: Connect up to four RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial ports supports up to 921.6Kbps; TAA-compliant
  • ETHERNET AND POWER OPTIONS: Single RJ45 10/100 Mbps Ethernet port; Serial device server operates over Telnet (RFC2217), UDP, or TCP client/server; Dual power options DC jack and terminal block; Includes a universal power adapter & supports 5VDC over pin 9
  • VIRTUAL COM AND WEBUI: Windows-based DSM (Device Server Manager) software enables virtual COM port management for one or more serial device servers; Fully configurable through a WebUI with universal OS compatibility

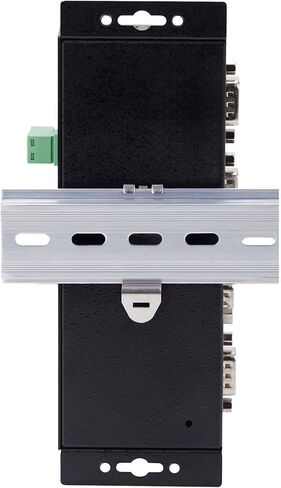

  • MOUNTING OPTIONS: Includes all the necessary hardware for wall and DIN rail mounting; Multiple mounting holes on the RS232 over IP adapter allow installation in the optimal orientation for any application
  • RUGGED ENCLOSURE: All-metal housing ensures durability in harsh conditions; Dimensions 7x2.3x0.9in (178x59.4x23mm); Supports Level-4 ESD protection (15kV air/8kV contact)

Description

This 4-port serial to IP converter enables remote control of different RS232 devices over an IP network. The serial over LAN adapter is highly customizable using the Windows-based companion software, Device Server Manager (DSM), that enables the creation of virtual COM ports, allowing seamless migration of existing serial applications. Dimensions of 7x2.3x0.9in. The converter is housed in a full metal enclosure for durability in harsh environments. It includes all necessary hardware for wall and DIN rail mounting. The converter features Dual power options, DC jack and terminal block. A universal power adapter is included. Single RJ45 10/100 Mbps Ethernet port supporting Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols. It also supports ESD level 4 surge protection and can provide 5VDC through pin 9 if required.
