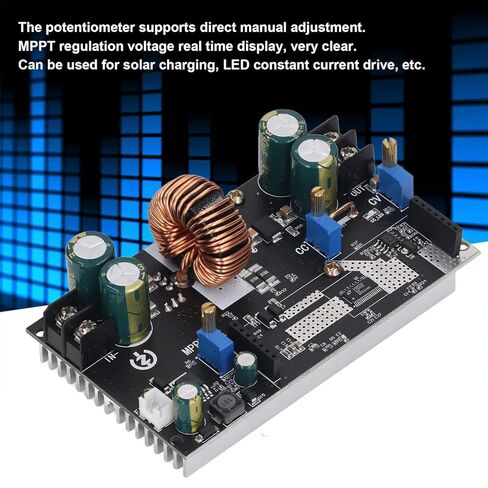

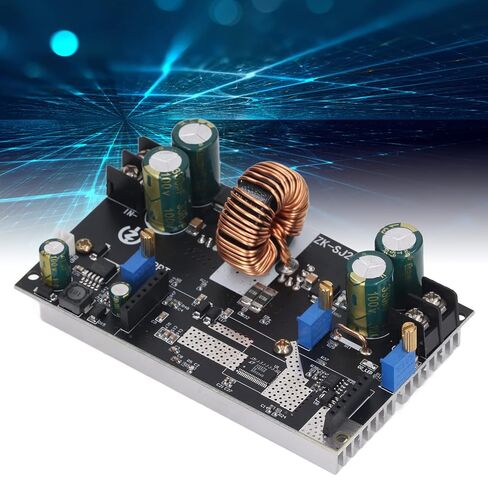

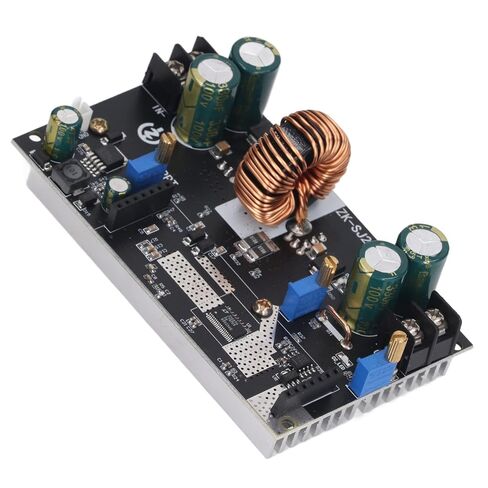

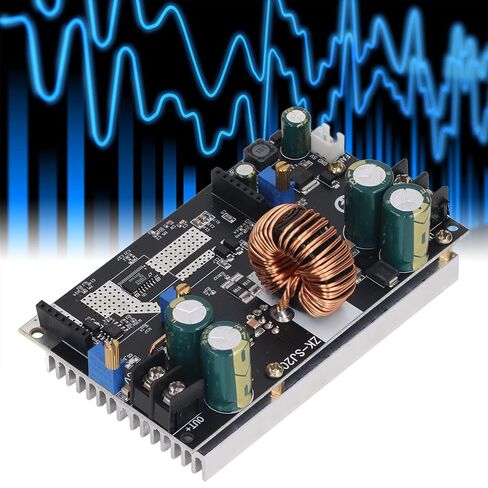

Boost Converter, Boost Power Supply Module Automatic 300W 20A DC 7 to 80V Input DC 1.4 to 79V Output Regulator MPPT Module, Power Converters

KWD 9.500
Brand
Fafeicy
Weight
220 g
– 1 +

Special Features

  • Easy to Install: regulator is designed to have a compact size and a light weight as well, installation is very simple to finish in minutes.
  • Stable Working: Excellent heat dissipation ensures stable working performance under high power, and very efficient and reliable.
  • Easy Adjusting: adjusting knob can be used to adjust MPPT voltage, output voltage and limiting on output current, very easy.
  • Fast Heat Dissipation: Excellent heat dissipation ensures stable working performance under high power, and very efficient and reliable.
  • Easy Adjusting: adjusting knob can be used to adjust MPPT voltage, output voltage and limiting on output current, very easy.

Description

Specification:
Item Type: Buck Boost Converter
Input Voltage Range: DC7-80V
Output Voltage Range: DC1.4-79V
Voltage Display Range: 1.40-80.00V (accuracy ± 0.1V)
Output Current Regulation Range: 0-20A
Current Display Range: 0.00A-20.00A (accuracy ± 0.03A)
Adjusting Knob: For MPPT voltage regulation, output voltage regulation, output current limiting regulation.
MPPT Function: Yes
Anti Backflow Function: Yes, there is no need to string diodes to connect the battery.
Constant Current and Current Limiting: Yes
Overpower : 300W, over power will turn off the output and display OPP.
Product Size: Approx. 108 x 64 x 48mm / 4.25 x 2.52 x 1.89in
Application: For solar charging, lithium battery charging, LED constant current drive, regulated power supply.

packing list:
1 xBuck Boost Converter
