Special Features

  • The LCD can display voltage input and output, output current, output power, output capacity, and output time.

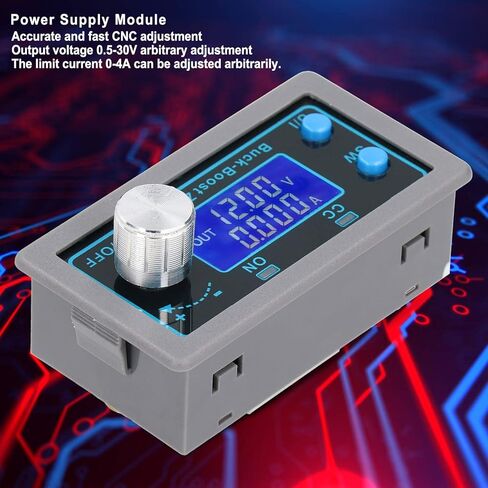

  • Numerical control adjustment is accurate and fast, can increase and decrease voltage, output voltage can be adjusted arbitrarily from 0.5-30V, and limit current can be adjusted arbitrarily from 0-4A.
  • The input terminal is protected against reverse connection, and the reverse connection will not burn.
  • The output terminal is anti-backflow, and there is no need to add an anti-backflow diode when charging the battery.
  • The module can be set to turn on/off by default, with low output ripple and π-type filtering.

Description

Specification:
Item Type: Boost Power Supply Module
Model: ZK-4KX
Main Material: ABS+Aluminum
Input Voltage: 5.0-30V
Output Voltage: 0.5-30V
Output Current: Can work stably at 3A for a long time, and can get 4A with enhanced heat dissipation
Output Power: heat dissipation 35W, enhanced heat dissipation 50W
Voltage Display Resolution: 0.01V
Current Display Resolution: 0.001A
Conversion Efficiency: About 88%
: Yes (it may fail when the module with load is started)
Mechanism:
Input anti-reverse connection;
Output anti-backflow;
Input Undervoltage : 4.8-30V adjustable, default 4.8V
Output Overvoltage : 0.5-31V adjustable, default 31V
Output Overcurrent : 0 -4.1A adjustable, default 4.1A
Output Over Power : 0 -50W adjustable, default 50W
Over Temperature : 80-110 adjustable, default 110
Timeout : 0 -100h adjustable, closed by default
Over-capacity : 0 -60Ah adjustable, closed by default
Working Frequency: 180KHZ

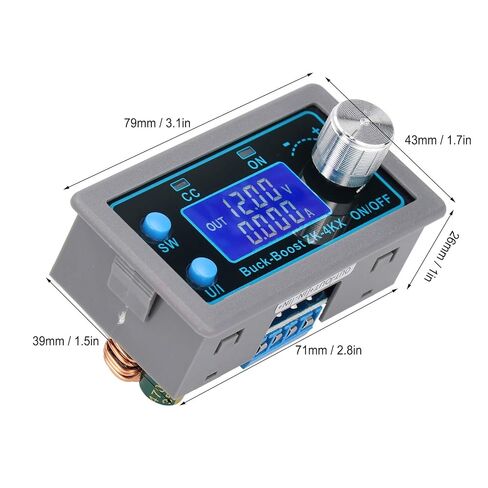

LWH: Approx. 79 x 43 x 26mm / 3.1 x 1.7 x 1in
Panel Cut-Out Size: Approx. 71 x 39mm / 2.8 x 1.5in

Package List:

1 x Boost Power Supply Module
