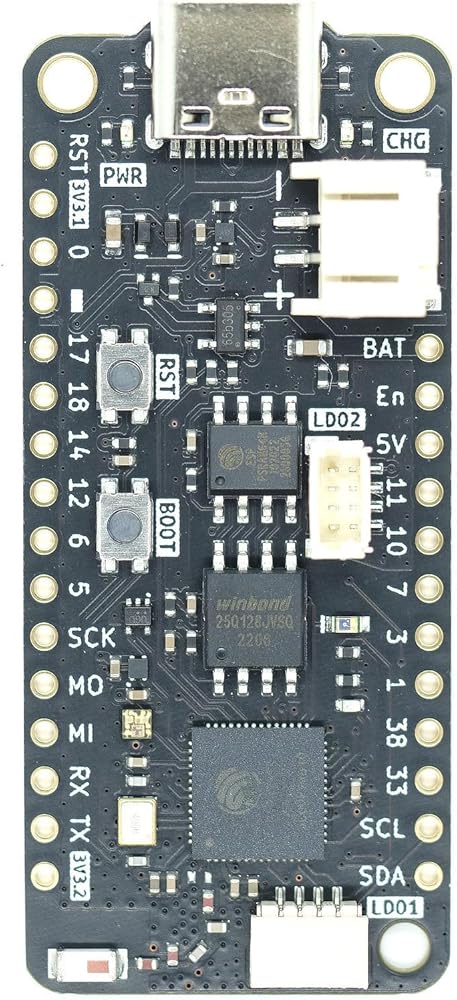

ProS3 (ESP32-S3 Board)

KWD 12
Weight
9 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • It's packed with amazing features and peripherals, ESD protection, castellated headers, wireless connectivity, and stacks of Flash and PSRAM, and it's TinyPICO/ProS3 compatible!
  • Each ProS3 ships with a UF2 bootloader and the latest version of CircuitPython that supports the ESP32-S3.
  • Ships with a set of male headers you can solder on if required.

Description

Technical Specifications - 32Bit Dual Core 240MHz - RISC-V Ultra-Low Power Core - 2.4GHz Wi-Fi - 802.11b/g/n - Bluetooth 5, BLE + Mesh - 16MB QSPI Flash - 8MB Extra QSPI PSRAM - USB-C Connector - USB ESD Protection - Reverse USB Back-Feed Protection - 2x 700mA 3.3V LDO Regulator - Ultra-Low Deep Sleep Current - STEMMA Connector - Low Power RGB LED - VBAT Voltage Check + 5V Presence Detection - LiPo Battery Charging - MicroBlade LiPo Connector - Power (Red), Charge (Orange) LEDs - 27x GPIO Broken Out - Castellated Headers - JTAG Pins + USB Serial JTAG - 3D High Gain Antenna - Compatible with TinyPICO, TinyS2, and TinyS3
