Product Description:

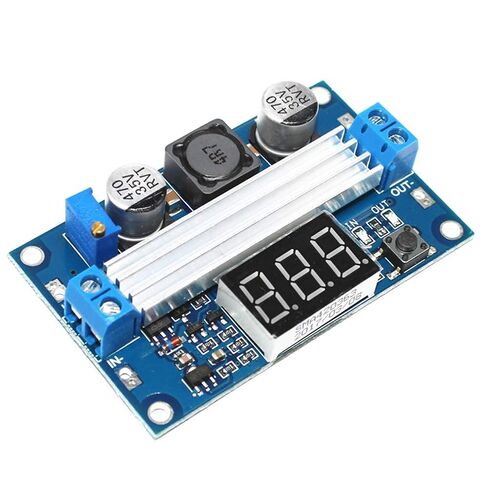

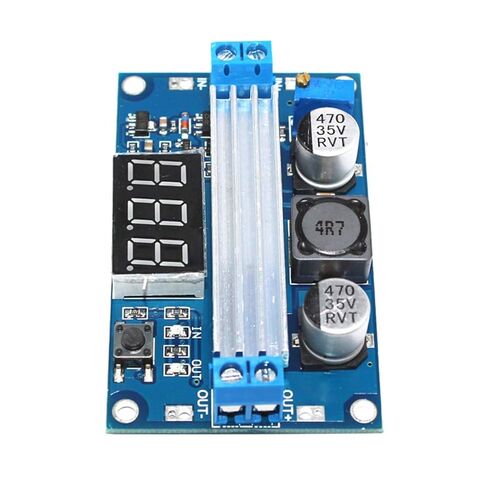

The boost module uses advanced microcontroller and U.S. imports boost controller, it eliminates the need for a current sense resistor by utilizing the power mosfet\'s on-resistance, thereby maximizing efficiency, up to 96.4%. Imported high-power low-resistance mos transistor, heavy current and high efficiency schottky, wider and thicker PCB traces, is a guarantee of high-power and low temperature rise. When the input and output voltage is greater than 20V, the module up to 128W output power.

Performance parameters:
Input voltage range:3~35VDC(Note: the input voltage is less than 4V, voltmeter failure)
Input current:9A (max)
Output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage)
Output current: 6A (max)
Output power: 75W (when the input and output voltages greater than 20V up to 128W)
Conversion efficiency: 96.4% (max)
Voltmeter range: 4 to 40V, error ±0.1V
Short circuit protection: yes(limit current 14A). (Note: connected to high-power load, just switched on the impact of current very general meeting current limiting self-locking protection, it is recommended to be switched on firstly, and then access the load).
Input reverse polarity protection: None (if required, high current diode in series with the input).
Size: 67 * 43 * 12mm (L x W x H)

Application:
DIY a regulated power supply, 5V input can be output 5-35V adjustable.
The power supply for your electronic equipment. For example, 3.7V lithium boost to 5V for mobile power; 7.4V or 12V boost to the laptop power supply to 19V.
As the vehicle power supply for your laptop, PDA or a variety of digital products supply.
