The 3.3V PWM digital signal is converted to 0 to 10V analog signals. Can be used for PLC or other industrial control panel of the signal interface switch.

Parameter:
PWM signal reception frequency range: 1KHZ-3KHZ.
PWM signal input level range:
4.5-10V level, jump cap plug in the 5V, the level of the signal is for conventional industrial control card (such as MACH3 board), 5V CPU interface;
12-24V level, jump cap inserted at 24V, the level of the signal is mainly for conventional PLC interface
Power input range: 12V-30V
Mounting fixed: 4 * M3 screw hole.

Other functions:
1. Power supply has anti-power supply.
2. Power on the power indicator light.
3. By adjusting the potentiometer on the board, you can match the PWM signal pulses at different frequencies.

Package Included:

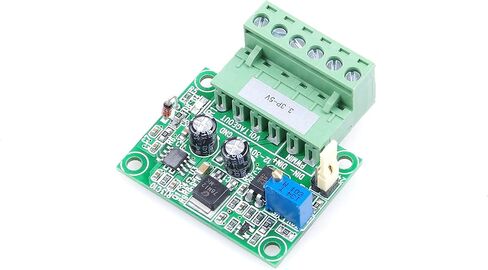

1*PWM To 0-10V Conversion Module
