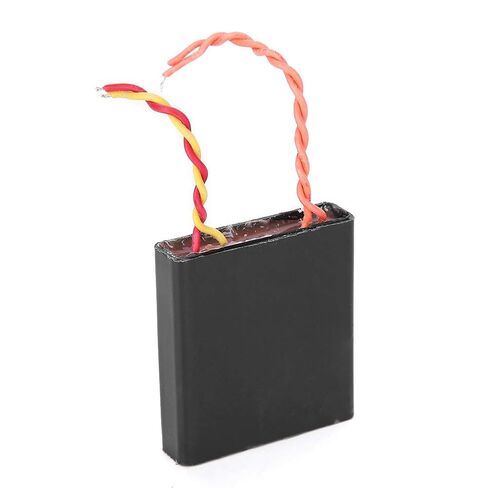

400KV High Voltage Generator Compact Boost Step Up Power Module Transformer for Coil with Powerful Discharge

KWD 3.500

Brand
YWBL-WH
Weight
27 g
1 +

Special Features

  • Used for coil principle, output high-voltage pulses, powerful discharge .
  • The high-voltage module/generator made by the circuit composed of components, can be used as a high-voltage source for school scientific experiments, electronic devices, negative-ion generator and science small productions.
  • Compact size, high efficiency, stable and professional performance, dependable to use.
  • 400KV high output voltage, which is practical and dependable to use.
  • Built to meet standard specification, strictly follow factory quality control.

Description

Specification:
Condition: 100% Brand New
Item Type: High-Voltage Generator
Material: Plastic
Color: As picture shown
Model: HX-GBPG
Length: Approx. 4.2cm/1.7in
Width: Approx. 3.8cm/1.5in
Thickness: Approx. 1cm/0.4in
Rated Voltage: 3-6V
Rated Current: 1-3A
Output Voltage: 400KV
About Power Supply: can use single section 3.7V lipo battery or two series connection, such as battery, idle mobile phone battery (remove board, recommended capacity is 2000mAh) or -/-hydrogen battery pack, 4V or 6V -acid Battery and so on.

PackageList:
1 x High-Voltage Generator

Notice:
Precautions for Using the Module:
1. The high-voltage module should avoid being energized when the high-voltage is no-load. Before powering on, the appropriate distance of the high-voltage line end must be adjusted. The arcing distance of the high-voltage line is proportional to the battery voltage and capacity used.
2. Experiment from short to long when testing the arc distance. It is strictly forbidden to exceed the maximum arc distance when energized, because the high voltage energy cannot be released and the module is easily damaged.
3. The power of the module is large, and the internal is not suitable for heat dissipation, so it is not allowed to work for a long time.
4. The method to judge whether the battery capacity can drive the maximum output power is to measure the battery voltage when the arc is drawn. If it is around 6V, it can output the maximum power.
5. The two sections of small capacity lipo batteries are connected in series at 7.2V. The measurement voltage has dropped to about 4V in the arcing state. The smaller the capacity, the lower the voltage. Therefore, it is recommended to use lipo batteries 2000MA, and it is best to match batteries 4000MA if possible.
