Description:

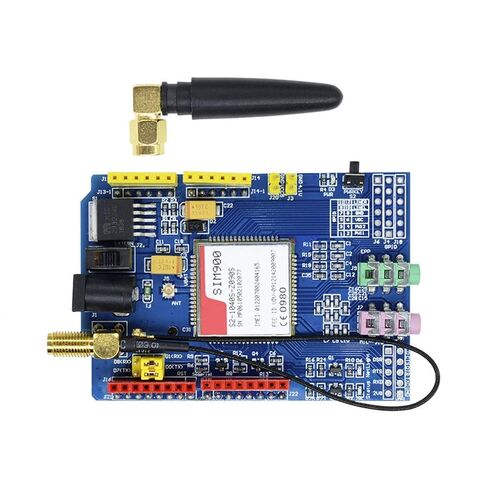

The GPRS Shield is based on SIM900 module. The GPRS Shield provides you a way to communicate using the GSM cell phone network. The shield allows you to achieve SMS, MMS, GPRS and Audio via UART by sending AT commands . The shield also has the 12 GPIOs, 2 PWMs and an ADC of the SIM900 module(They are all 2V8 logic) present onboard.
Features:
Quad-Band 850 / 900/ 1800 / 1900 MHz - would work on GSM networks in all countries across the world.
GPRS multi-slot class 10/8
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @ 850 / 900 MHz)
Class 1 (1 W @ 1800 / 1900MHz)
Control via AT commands - Standard Commands: GSM 07.07 & 07.05 | Enhanced Commands: SIMCOM AT Commands.
Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).
Embedded TCP/UDP stack - allows you to upload data to a web server.
RTC supported.
Selectable serial port.
Speaker and Headphone jacks
Low power consumption - 1.5mA(sleep mode)
Industrial Temperature Range - -40°C to +85 °C
Size:8.5x5.7x2cm(approx)
