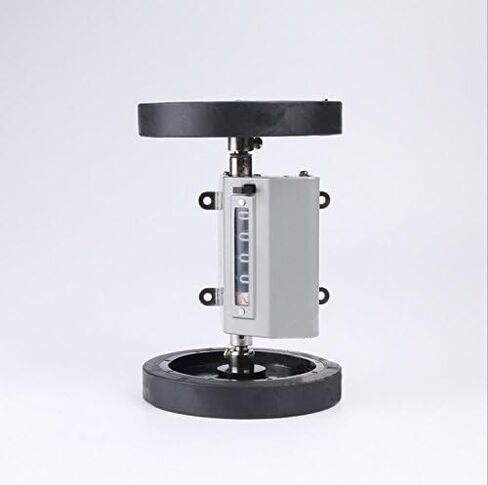

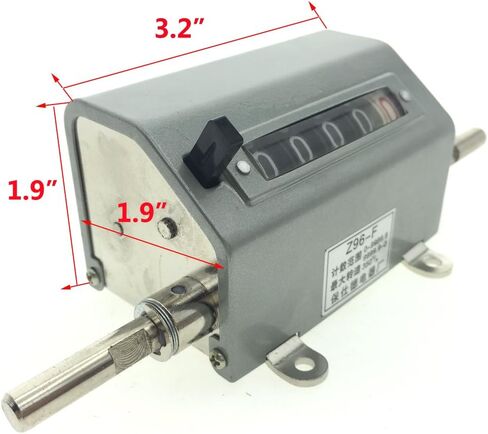

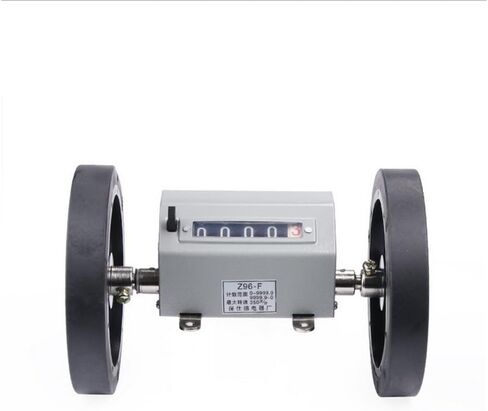

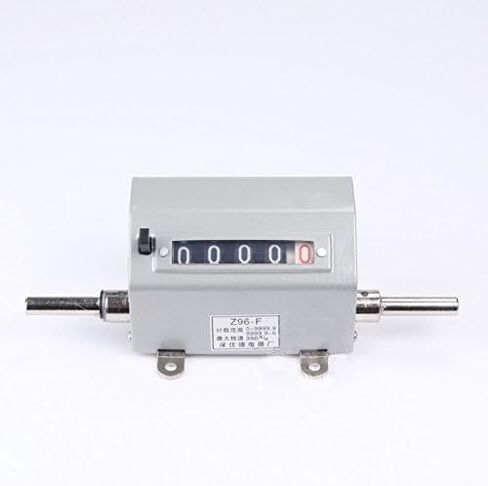

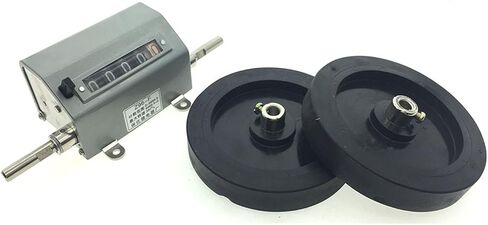

Z96-F(Y)-type rolling counter is designed according to user needs, is used to measure the length and a variety of mechanical transmission of the re-recorder, generally used for textile, printing and dyeing, plastic film, artificial leather and other heavy volume of the record.

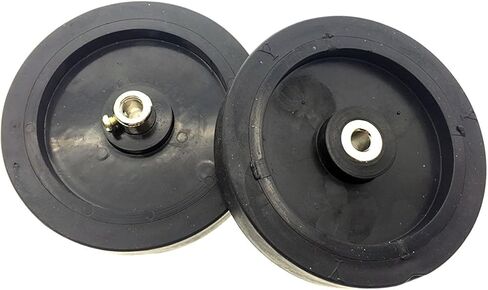

Features: The device is five digits, the direction of rotation of the shaft can be reverse rotation, along to the increase, reverse to decline, the highest number of permanent record 1-9999.9. When the second digit of the counter is displayed. Record length of 1M, rolling wheel three laps, and so on, every ten carry. The device is equipped with a new body, such as recording to a certain number, you can push the complex handle, the number of all reset zero, and then for the second phase of the record.

Performance: flexible jumping, counting the right, the number shows clear, the working environment temperature -20 ℃ ~ +50 ℃, can still keep the count.

Index:
Range: 1-9999.9
Transmission ratio: 1: 3
Maximum counting speed: 350 r / min
