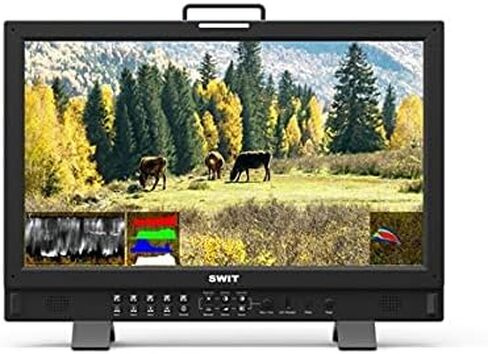

SWIT BM-H215 21.5'' 4K IPS LCD Panel, 1920×1080 Resolution Video Monitor,12GSDI 4 in 4 Out HDMI2.0 (4K60P) Input Director Monitor,FHD 1920x1080 for Post and Live Production Broadcast

KWD 799
Brand
SWIT
ColorBM-H215
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Sharper and More Detailed Image】The SWIT BM-H215 equipped with a 21.5'' IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 1000:1, and the viewing angle is H178° / V178°, giving you an accurate reproduction of video.Easy viewing is ensured by reducing color changes due to the viewing angle.
  • 【Webserver IP Remote Control】SWIT BM-H215 supports webserver remote control by Ethernet LAN connection. Just use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP
  • 【Audio Patterns & Eye Pattern】SWIT BM-H215 has max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket. Moreover, BM-H215 monitors support Lissajous figures and 5.1 & 7.1 surround sound patterns. And the built-in eye pattern to check input video transmission quality via SDI cable, especially the 12GSDI quality.
  • 【HDR/SDR De-log LUTs】SWIT BM-H215 monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc. You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.
  • 【Two Year Warranty】Package Contents 1× SWIT BM-H215 Broadcast Director Monitor, 1× Gold mount plate, 2× Desktop feet,1× User Manual. Note: battery not include. Detailed specifications are in the description, you can scroll down the page to see. We are the SWIT Official Store, we guarantee two year warranty, if you have any question, just feel free to contact us, our professional team will do our best to help you solve the problem.

Description

LCD Performance
Size: 21.5 inches
Display area: 476×268mm
Resolution: 1920×1080
Aspect ratio: 16:9
Brightness: 250nits
Contrast: 1000:1
Color depth: 16.77M colors, 8-bit
Signal process: 18-bit
Viewing angle: 178°(H) /178°(V)

Input
BNC ×1: 12G/6G/3G/HD/SD-SDI input
BNC ×3: 3G/HD/SD-SDI input
HDMI ×1: HDMI 2.0 input
RS485 ×1: TSL 3.1/4.0 UMD input
RS485 ×1: GPI (Tally) input
RJ45 ×1: 1000M Ethernet input for Webserver IP control

Output
BNC ×1: 12G/6G/3G/HD/SD-SDI loop output
BNC×1: 3G/HD/SD-SDI loop output
RS485 ×1: TSL 3.1/4.0 UMD output
Analog audio: 3.5mm headphone and speaker

Video Format
SDI 1
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

SDI 2/3/4
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

Quad Link 4K (Each channel)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDMI
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General
Input voltage: DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption: 60W
Working temperature: 0°C～+50°C
Working humidity: 10%～90%
