DT Connector Specification:
Gender: Pin/Male
Wire Range: 14-18
Wire Size: 16-20 AWG
Contact Plating: Nickel
Accepts contact size: 16
Integrated latch for mating
In-line, flange, or PCB mount
Insulation:.075-.140 [1.90-3.55]
Contact Style: Stamped & Formed
Rectangular, thermoplastic housing
Current Rating: 13 Amps Continuous
Pin Number: 2, 3, 4, 6, 8, and 12 cavity arrangements
Wedgelocks assure contact alignment and retention
Operating Temperature: 14°F (-10°C) to +176°F (+80°C)

Easy Set Up & Repair:
Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the connector. It can also be easily removed when needed
High Precision:
DT Electrical Wire Connector Plug use high-precision phos-copper plating process to improve conductivity, easy to install under soldering and crimping

When to Use:
DEUTSCH DT connectors provide reliability and performance on the engine or transmission, under the hood, on motor controllers, solenoid interfaces, on the chassis, or in the cab. DT connectors offer field proven reliability and rugged quality. The DT design strengths include optional flange mounting, multi-pin arrangements, lower costs, and design flexibility. DT connectors offer the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity, within a single shell.

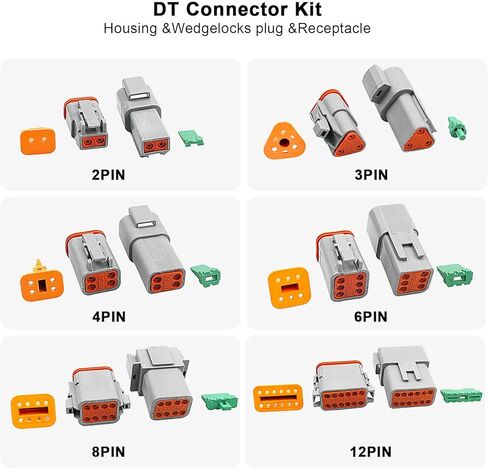

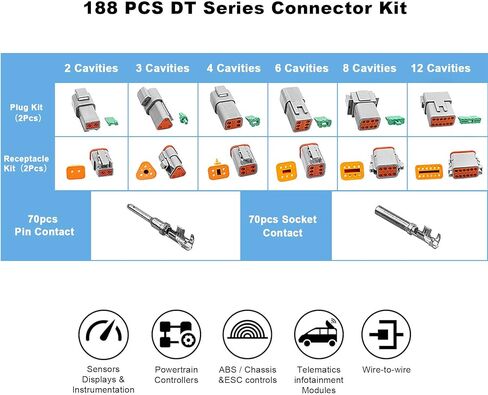

What you will get?
1pcs 12Pin Male, 1pcs 12Pin Female
1pcs 8Pin Male, 1pcs 8Pin Female
1pcs 6Pin Male, 1pcs 6Pin Female
1pcs 4Pin Male, 1pcs 4Pin Female
2pcs 3Pin Male, 2pcs 3Pin Female
2pcs 2Pin Male, 2pcs 2Pin Female
40pcs Male Terminal, 40pcs Female Terminal
This plugs can only be used once, we recommend not to disassemble it after using the plug.
