uxcell Analog Current Panel Meter DC 0-20A 91C4 with 75mV Shunt for Circuit Testing Ampere Tester Gauge, 1 Set

KWD 5.500
Brand
uxcell
Weight
137 g
– 1 +

Special Features

  • [Main Parameter] - Model: 91C4; Measurement Range: 0-20A, Accuracy of Class: 5.0
  • [Material] - Transparent plastic shell is convenient for you to read scale quickly
  • [Size] - Meter Panel Size(Approx) : 1.7x1.7 Inch / 45 x 45mm(LxW); Mount Size : 1.5x1.1 Inch / 38x27mm(LxW)
  • [Shunt Features] - Voltage Drop: 75mV; Shunt Overall Size: 4.72x0.98x0.71 Inch / 120x25x18mm(LxWxH); Shunt Accuracy: 0.5
  • [Appalication] - Needle ampere panel meter is great for replacing broken meter, monitoring circuits, measuring current, or other voltage measurement devices

Description

Specifications:
Model: 91C4
Measuring Range: DC 0-20A
Accuracy: Class 5.0
Mount Size : 1.5x1.42 Inch / 38x36mm(LxW)
Meter Panel Size(Approx) : 1.7x1.7 Inch / 45 x 45mm(LxW)

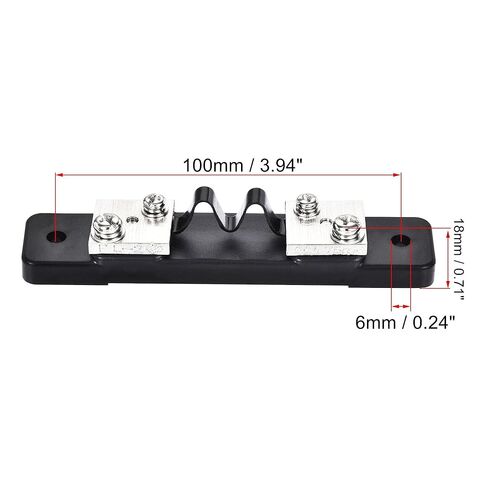

Shunt Overall Size: 4.72x0.98x0.71 Inch / 120x25x18mm(LxWxH)
Shunt Overall Material: Copper, manganese copper
Shunt Mounting Distance: 3.94 Inch / 100mm
Shunt Mounting Hole Diameter: 0.24 Inch / 6mm
Number of Connection Bolts: 4
Voltage Drop: 75mV
Shunt Accuracy: 0.5

Features:
An ammeter shunt allows the measurement of current values too large to be directly measured by a particular ammeter.
This ampere panel meter is great for replacing broken meter, monitoring circuits, measuring current, or other voltage measurement devices

Package Includes:
1 x Shunt
1 x Analog Ammeter
Several Installing Parts
