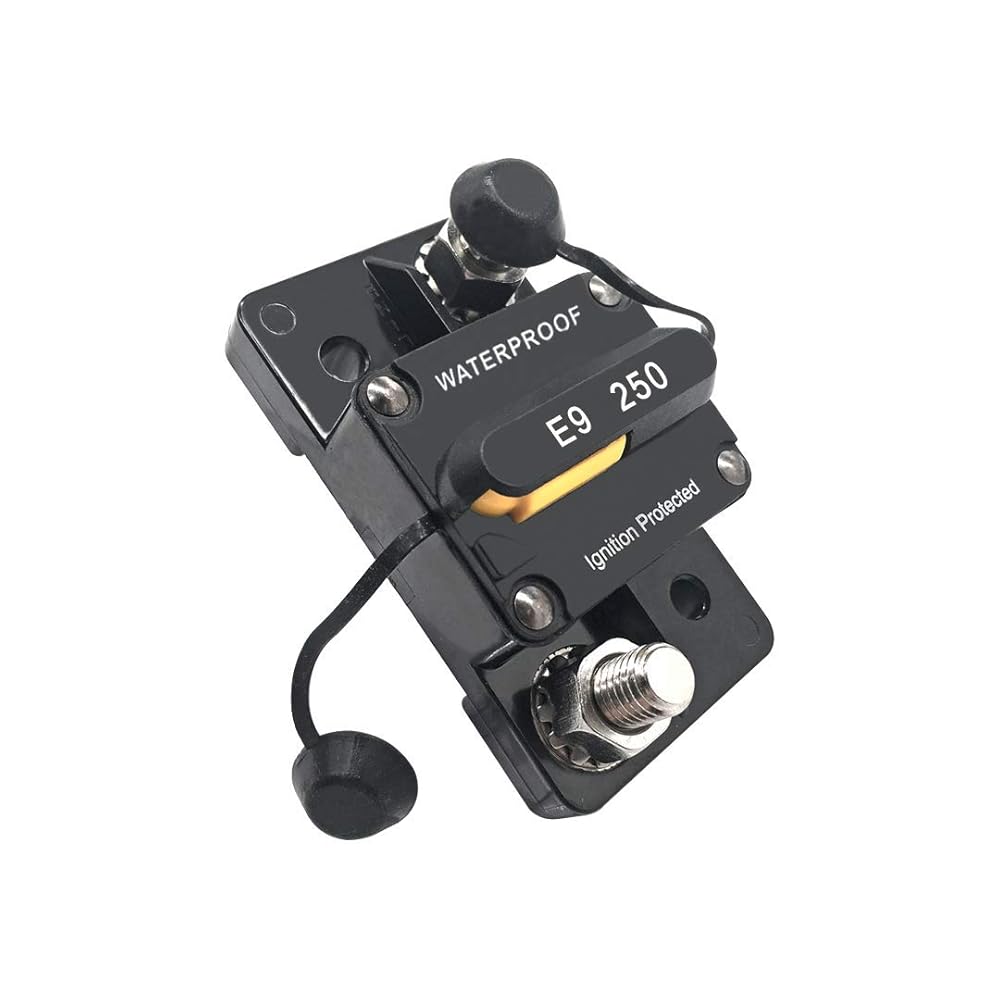

GLOSO Circuit Breaker E92 Manaul Reset, Waterproof IP67 Marine Auto Truck, 3/8" Stud, Hi-Amp (250A)

[Circuit Breaker] - Marine circuit breakers are designed to protect equipment from the effects of short circuits and overload. When the current reaches the cut-off value of the circuit breaker, its long handle automatically pops out. After dealing with the circuit problem, it is necessary to manually reset the circuit breaker to restore the circuit to normal.
[Application] - Circuit breakers are widely used in automotive video systems, buses, trucks, ships, tractors, and yachts.
[Design] - Marine circuit breakers have a different design. It is not designed with a manual disconnect button. The purpose is to prevent the circuit breaker from accidentally pressing the manual disconnect button during operation, causing the current to disconnect and causing the staff to mistakenly believe that the circuit breaker was disconnected due to a circuit problem.
[ Waterproof ] - Circuit breaker housing is IP67 waterproof grade, practical and durable. Very suitable for use in harsh environments. Marine circuit breakers can be installed on panels or firewalls.
[ Rated Power ] - Circuit breaker voltage 12V-48V DC, current 25A,30A,40A,50A,60A,70A,80A,90A,100A,110A,120A,135A,150A,175A,200A,250A. Designed to protect the system from circuit problems caused by short circuits, wiring errors, equipment failures, or other high current events.

GLOSO E92 Hi-Amp Circuit Breakers: 250Amp, 1 Pack

Reset Type: Type 3 Manual Reset, Extended Surface Mount

Operating Temperature Rating: –25°F (–32°C) to 180°F (82°C)

Storage Temperature Rating: –30°F (–34°C) to 300°F (149°C)

Materials: Black UL-Rated 94V-0 thermoplastic thermoplastic elastomer stud insulators are provided on covered units with surface mount style

Marking: Standard marking includes Amp Rating and date code

Termination: 3/8"-16 threaded studs

Compliances: SAE J553; SAE J1625; ABYC E-11; SAE J1171 (Ignition Protected); UL1077*
