WLCA12-2-Q Adjustable Roller Lever Arm Limit Switch 380V 10A NC-NO Momentary

Product: WLCA12-2-Q Limit Switch, 1 NO 1 NC
Rated Value: UI: 380V, Ith: 10A. AC-15 Ue: 250, le: 6A; DC-13 Ue: 220, le: 0.3A
Application: Double-circuit type of limit switch, is widely used, can be used in various mechanical to monitor the position of moving parts of machines and plant
Good Materials: With strong aluminum cast outer shell, Built-in contact stand has double-spring, so it has long mechanical life, Structure preventing oil, water and pressure

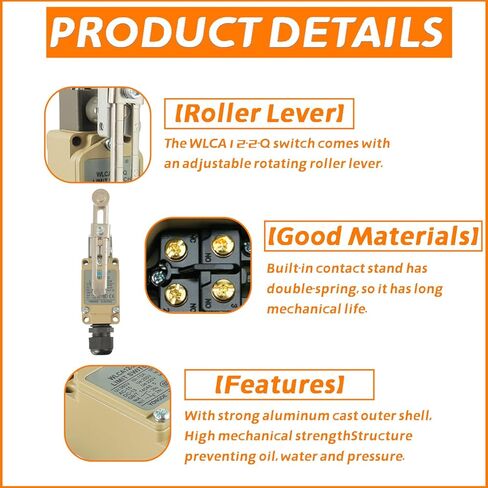

Roller Lever: The WLCA12-2-Q switch comes with an adjustable rotating roller lever, can be rotated to the left and to the right, which you can adjust according to your own needs. (25-89°)

Specifications：

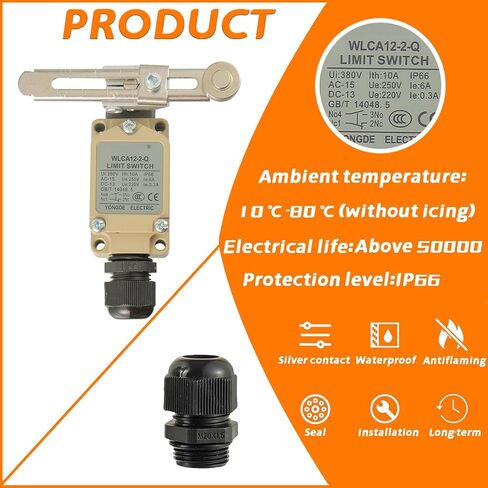

Product : Limit switch

Model: WLCA12-2-Q

Actuator Action : Momentary

Protection level： IP66

Electrical life: Above 50000

Ambient temperature: -10 ℃ -80 ℃ (without icing)

Features：

Double-circuit type of limit switch, is widely used

With strong aluminum cast outer shell

High mechanical strength

Structure preventing oil, water and pressure

Indicating plate with setting position is installed in it, so it is easy to maintaino

Various of actuators is taken convenience for using

Built-in contact stand has double-spring, so it has long mechanical life

Package:

1*WLCA12-2-Q Limit switch

1*M20x1.5 cable gland
