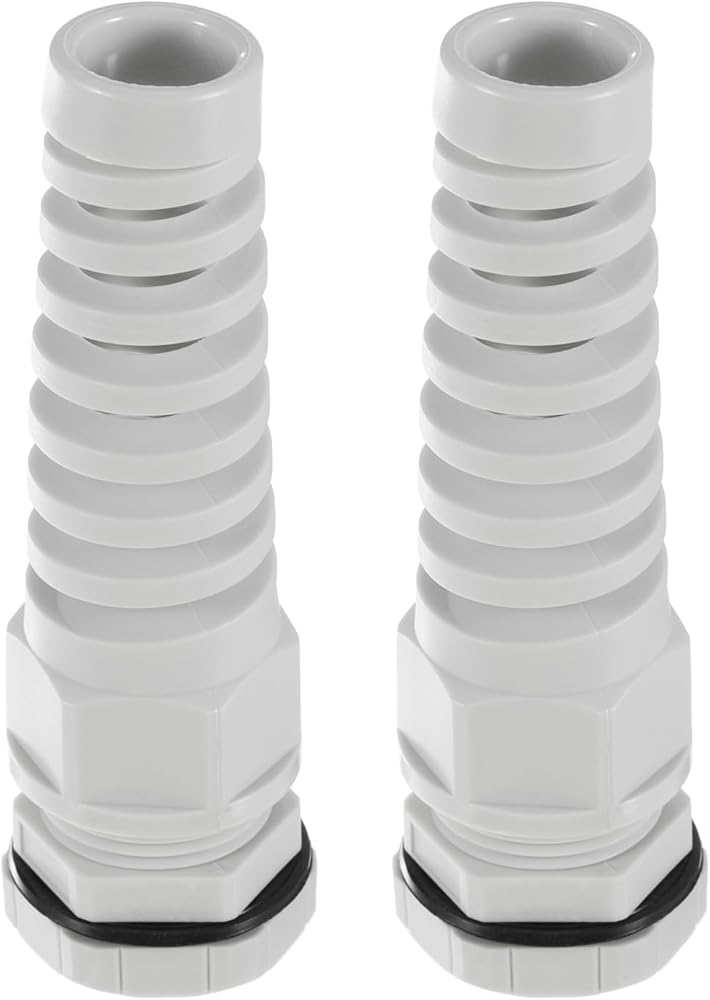

Gland head, also known as cable fixing head and cable waterproof joint, is an accessory used for fixing and protecting wire and cable.Cable glands are sealed and secured to prevent water, dust, and oil from entering into the cables to ensure the reliability and safety of electrical connections.

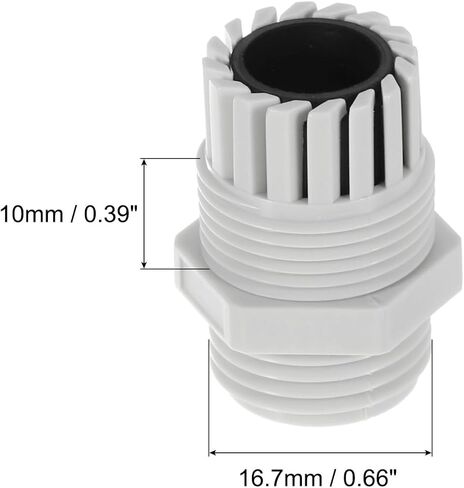

Fit Cable Range: 6-10mm/0.24-0.39 inch; Thread Size: 16.7 x 10mm/0.66 x 0.39 inch(OD*L)

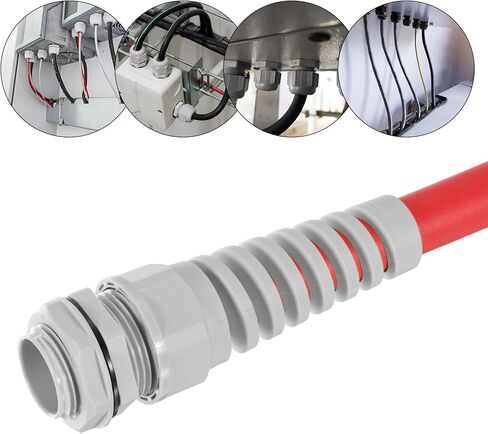

Spiral design, rotary joint is better to protect wire cable. Adjustable range strain relief cables and conduit connectors can be attached to electrical equipment and junction boxes.
Made of nylon PA66 plastic, waterproof grade IP68, with good heat resistance and wear resistance.
Installation steps are as follows: 1. Install the seal of the head in the corresponding slot of the head; 2. Route the cable through the inlet of the gland head; 3 Tighten the nut according to the specified torque using a metal wrench.
