Specification:
Description:
The photocell switch is an automatic control of the lighting time according to the illumination value of the environment. It has the characteristics of saving energy, life, and reliable.
It is generally used in places where the visibility is low and it is necessary to switch the lamp automatically for a time.
Features:
Saving energy, life, and reliable.
Using three-wire system, compatible with resistance.
The internal environment with automatic illumination detection circuit, shut down during the day and open during the night automatically.
Control of the lighting time according to the illumination value of the environment automatically.
Suitable for the LED lighting and outdoor monitoring, advertising gallery, garden lights and other automatic switching lights control.
Specification:
Condiiton: Brand New
Color: Black
Wiring: Export three-wire system
Voltage range: 12V 24V 36V 48V
Supply voltage: 8V to 50VDC (module normal operating voltage range)
Standby current: 0.5ma (silent state)
Output power: High power, load current 5A, the pressure drop is negligible.
Power consumption: 0.6W maximum
Anti interference delay: about 0.6 second
Sensitivity: 5-10LX on 30-60LX off
Environment temperature: -40℃ ~ +70℃
Related Humidity: 99%
Working Life: 6500 cycles
Detector waterproof grade: IP 66
Use of the environment, temperature: Can not be installed in a corrosive gas environment, minus 25 to 70 degrees.
Leads Length: 150mm
Product Size: (L) x (W) x(H) 40 x 15.6 x 20 mm / 1.57\" x 0.61\" x 0.79\"(appr.)
Package Included:

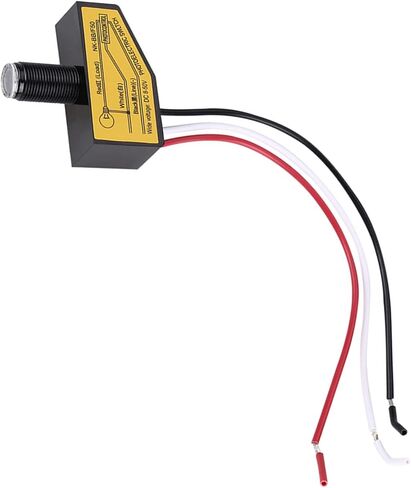

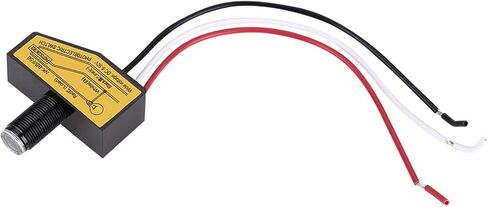

1x Photocell Switch
Notice:
1. Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering.
2. Please understand that colors may exist chromatic aberration as the different placement of pictures.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
