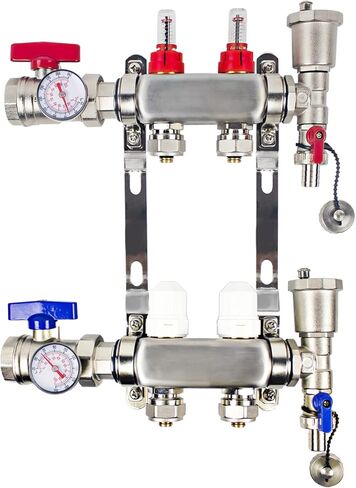

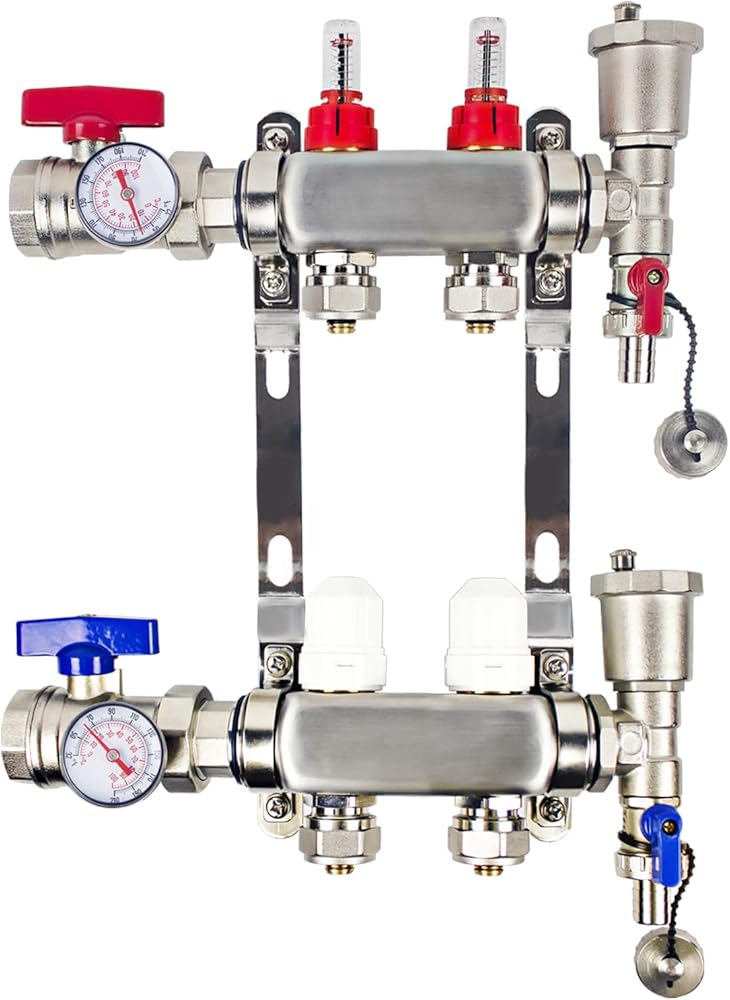

Product Parameter:7 loops with 1 extra drain and cap, 1" FPT supply and return, large interior space， up to 1.4 GPM high flow meter. Compatible with 1/2" tubing outlets, great for radiant floor heat systems.
Quality Performance: Pex Radiant Manifolds are crafted from sturdy 304 stainless steel, built to withstand corrosion and pressure, while boosting thermal conductivity and ensuring better sealing, faster heating and insertion into plastic pipework. Every part can be replaced and dismantled individually, the stainless steel body can be used for a long time, with a large internal space and sufficient flow.

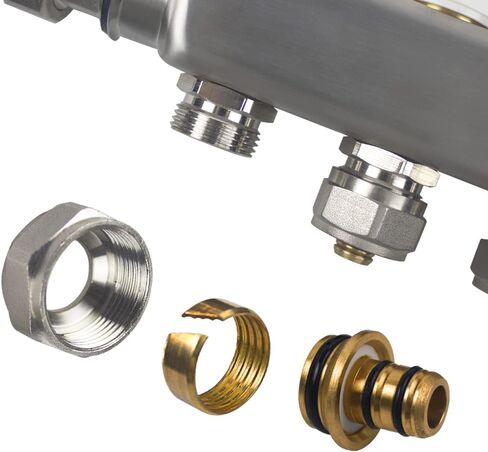

Easy For Installation:The stainless steel brackets are supplied for simple wall attachment. You do not need any PEX-specific tools, just regular pliers or an adjustable wrench to connect PEX tubing to the manifold. It has been pressure tested（0.8-1.0Mpa） and pre-assembled, so just mount it on the brackets and connect the valves and tubing.
Simple Operation: Visible flowmeters with stop valve can precisely adjust the water flow of each loop to avoid water grabbing from branch pipes. The automatic exhaust valve works continuously and automatically to release internal air during water injection or operation. The sewage valve also discharges impurities from the system, ensuring hydraulic balance of each loop.

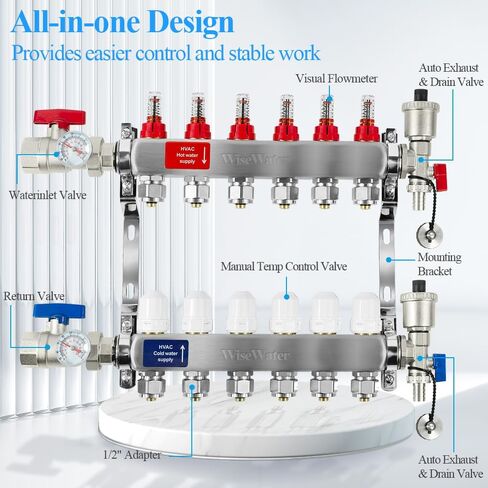

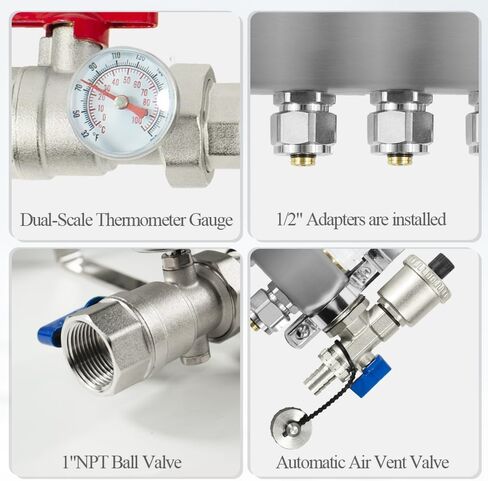

All In One:Each radiant manifold includes automatic air vent, shut-off valve, drain valves with outlet caps, temperature gauge, flow valve, balancing valve/manual wheel for supply and return trunks.
