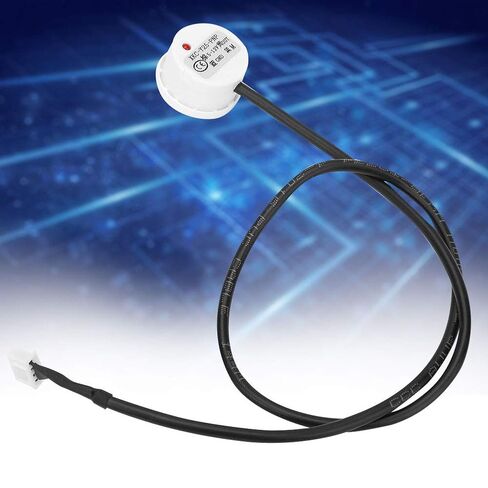

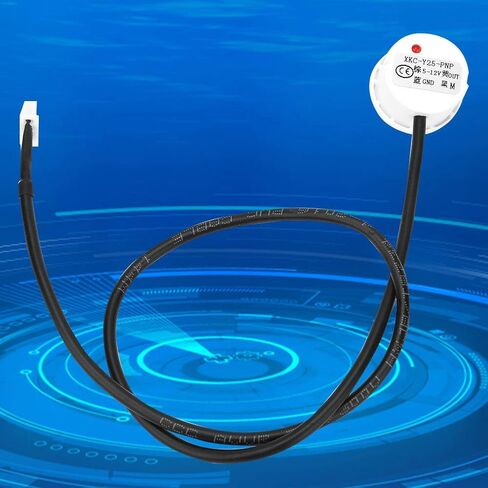

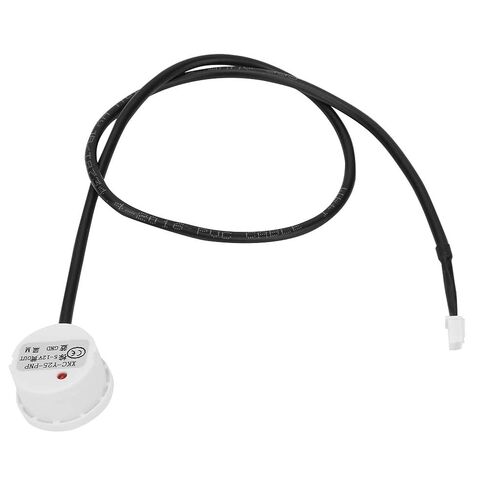

XKC-Y25-PNP Non Liquid Level Sensor, Output DC 5 to 12V Water Level Sensor Switch

Special Features

Non- liquid level sensor is applicable to non-metallic containers without direct with the liquid, not affected by scale or other impurities
Intelligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection
Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life
High stability, high sensitivity, strong anit-interference ability make sure it won't be affected by electromagnet, special designed to deal with power frequency interference and common mode interference
Strong compatibility through a variety of non-metallic material containers, such as plastic, glass, ceramics etc, with a 13mm or more induction distance

Description

Description:
Intelligent non- liquid level sensor adopts advanced processing technology and high-speed processing chip, and it won't be influenced by container wall thickness when detecting the liquid level in a airtight container. Liquid level sensor is installed under container (high level and low level). No need to bore a non-metallic container, easy to install. It can detect liquid level of various substances, , alkali and all kinds liquid in high pressure airtight container. It can be widely used and has no special requirement for liquid medium and material of container.

Specifications:
Model: XKC-Y25-PNP
Output: PNP
Input Voltage (InVCC): DC 5~12V
Current: 5mA
Output Voltage (high level): InVCC
Output Voltage (low level): 0V
Output Current: 1~100mA
Response Time: 500mS
Operating Temperature: 0~105℃
Induction Thickness (sensitivity): 0~13 mm
Communication: RS485
Humidity: 5% ~ 100%
Material: ABS
Ingress : IP67

Package Includes:
1 x Sensor
