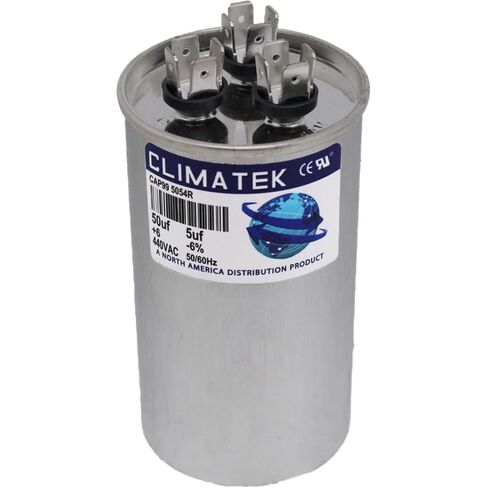

ClimaTek 50/5 50+5 MFD uf 370 or 440 Volt Dual Run Round Capacitor CLM5554R for AC Condenser Compressor & Motor

Sorry, this product is not available

Brand
ClimaTek

Special Features

  • ▶ This is a brand new ClimaTek Round Capacitor
  • ▶ 50/5 MFD / uF Capacitor. Replaces BOTH 370 & 440 VAC capacitors
  • ▶ Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.
  • ▶ Top Quality ClimaTek Replacement Part, Built to Last!
  • ▶ Replacement for: TRCFD505 , RC0120 , RC0121, 1094993 , 38514D018 , P2915053R , HC98CA050 , P291-5053RS , 024-25338-000 , 43-25133-25 , P291-5053R , 43-23204-15 , 432320415 , 05706036 , D6789043 , B94577400 , B9457-7400 , CARG32458 , TT-CAP-50/5/440R, & More!

Description

This ClimaTek capacitor combines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It is a dual capacitor that will power a compressor motor and a fan motor Model: CLM554(Universal model) Shell material: metal Dielectric Material: metallized polypropylene film Capacity: 50+5uf Tolerance: ±6% Rated voltage: 370V/440V AC Frequency: 50 / 60Hz Safety rated: 10,000 AFC Capacitor dimension: Diameter Height Operating temperature: -40 ℃ to +70℃/-104℉to+158℉ This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion. Round capacitor can be used to substitute oval shape one with the same MFD AND Volt specs.A 440 volt capacitor can be used in place of a 370 volt, as it is build better, but the 370 can't be used in place of a 440 volt.
