Package Include:
1* Receiver (with cover)
1* Remote Control (with battery, If you need extra remote control , please tell us. )

Paramete

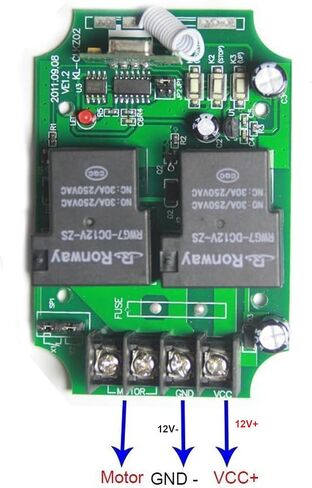

Board size: 92 * 60 * 24mm
Type: ASK
Quiescent current: 10mA
Max. Load: 20A, currently 30A
Operating frequency: 433MHz
Reception sensitivity: -95dBm
Coding type: learning code
Control mode: Momentary, latch, adjustable by jumper

Control mode Description
Latch (1 button on / another button off)
Momentary (Relay remains on as long as the button is pressed)

Set control mode
Latch: Connect JP1
Momentary: Connect JP2

operating
Setting the control mode Momentary
Press and hold button 1 of transmitter: motor rotates in positive direction. Release the button, the engine stops.
Press and hold button 3 of transmitter: motor rotates in reverse direction. Release the button, the engine stops.
Press and hold button 2 of transmitter: motor stops.

Setting the control mode Latch
Press button 1 of transmitter: motor rotates in positive direction.
Press button 3 of transmitter: motor rotates in reverse direction.
Press button 2 of transmitter: motor stops.

Clear Code
Press and hold the button on the receiver until the LED light flashes slowly, then release the button, then LED light stays flashing slowly. It means that all stored codes have been deleted successfully.

learn
Press the button on the receiver until the LED light of the receiver is lit. The recipient is now in the status of LEARN.
Press any button on the remote control. If the LED light flashes fifteen times quickly and then turns off, it means that you are learning
is successful. If the receiver is in the status of LEAVE, press the button of the receiver again and the LED light turns off; This implies that learning has stopped. The receiver can learn remote controls with different codes.
