Infrared IR Line Track Follower Sensor Module Obstacle Avoidance PCB Sensor Module 4-Channel with Dupont Cable for Smart Car

KWD 2.500
Brand
DKARDU
Weight
31 g
– 1 +

Special Features

  • Module features: When the module detects obstacles signal, red indicator lights on and OUT port continuous outputs low voltage level signals at the same time
  • Detection distance: Target reflectivity and shape is the key point of detection distance. Small and black objects have minimum detection distance, while large and white ones have maximum distance
  • Adjustable: Detection distance can be adjusted with potentiometer, clockwise to increase and counterclockwise to reduce
  • Multiple output ports are compatible: Output port can be directly connected to the SCM IO port, also can drive a 5V relay module or buzzer module directly
  • Applications: Widely used in robot obstacle avoidance, car obstacle avoidance, assembly line counting and black white line tracking

Description

Product description
This module provides a versatile infrared detection system solutions for automation machinery devices such as smart cars, robots. The sensor module is adaptable to ambient light. It has a pair of infrared transmitting and receiving tube. Transmitting tube sends out a certain frequency IR which will be reflected when detecting obstacles (reflecting surface) and received by receiving tube. After processing with comparator circuit, signal output interface outputs digital signal (a low voltage level signal).

Specifications:
Working Voltage: 3.3V-5V DC
Working Current: >1A
Detection Distance: 2~60cm
Detection Angle: 35°
Size:
Big Board: 42*38*12mm
Small Board: 25*12*12mm
Mounting Hole Diameter: 3mm

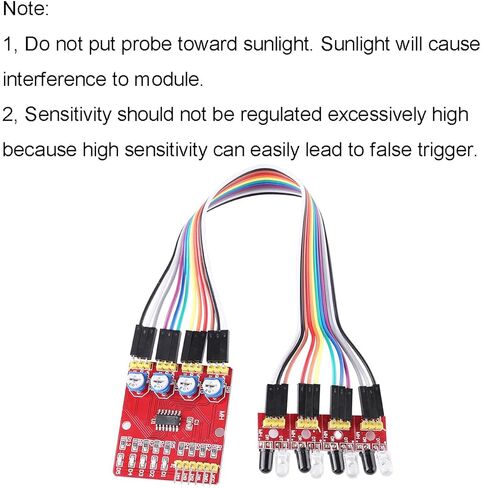

Note:
1, Do not put probe toward sunlight. Sunlight will cause interference to module.
2, Sensitivity should not be regulated excessively high because high sensitivity can easily lead to false trigger.

Package Includes:
1 x Infrared Tracking Module
1 x 12Pin female and female Dupont cable
1 x 6Pin female and male Dupont cable
