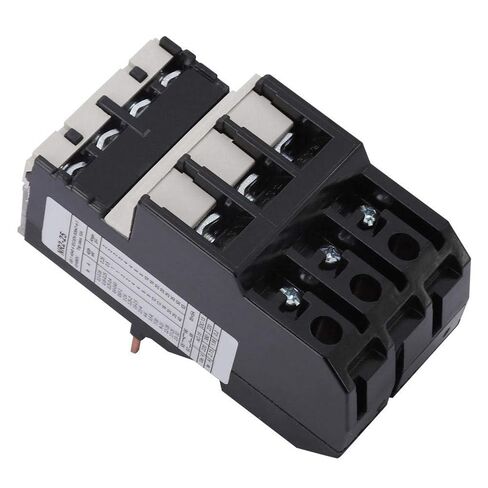

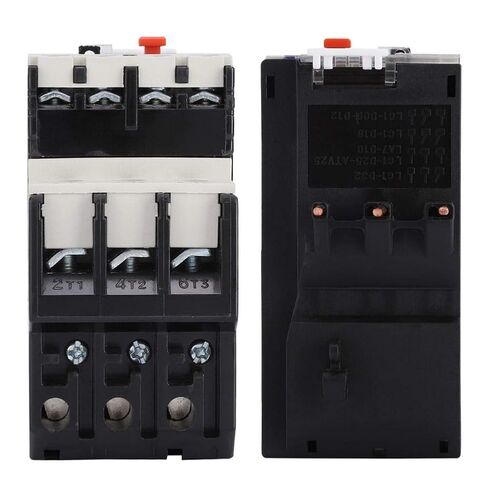

BR2-25 Electric Adjustable Motor Thermal Overload Relay (2.5-4A)

KWD 5.500
Brand
YWBL-WH
Category
Electric Motors
– 1 +

Special Features

  • Primary Use: Primarily used to prevent phase break in case of motor overload.
  • Material: Made with high-quality, abrasion-resistant materials for a long service life.
  • Variety of Features: The thermal relay offers various features including phase failure, manual and automatic reset, temperature compensation, trip indication, test and stop button for versatile use.
  • Efficient Performance: The relay utilizes different mechanisms and temperature compensation functions for optimal performance.
  • Versatile Use: Can be used in 50 to 60Hz circuits with a rated insulation voltage of 690V power system.

Description

Specification:
Power frequency: 50-60hz
Optional Rated current: 0.63-1A, 1-1.6A, 1.6-2.5A, 2.5-4A, 4-6A, 5.5-8A, 9-13A, 12-18A, 17-25A, 23-32A
Rated insulation voltage: 690v
Phase break :yes
Manual and automatic reset: yes
Temperature compensation: available
Tripping instructions: yes
Test button: yes
Stop button: yes
Installation: plug-in
Auxiliary contacts: 1NO+1NC
AC 15 220V rated current A 2.73
AC 15 380V rated current A 1.58
DC-13 220V rated current A 0.2
sectional area: main loop1-4, auxiliary loop 0.5-2.5
Tripping level:10A
specification:12aM20gG
Weight: Approx.180g/6.35oz

Package list:
1 * Thermal Overload Relay
