This CBB61 capacitor is an important supporting component for Electric fans, range hoods, ventilation fans, washing machines, ceiling fans, wall fans, vertical fans, small single-phase motors, etc.

Specification
Capacitance: 5uF+5uF+5uF;
Rated Voltage: 450 V;
Capacity Deviation: ±5%;

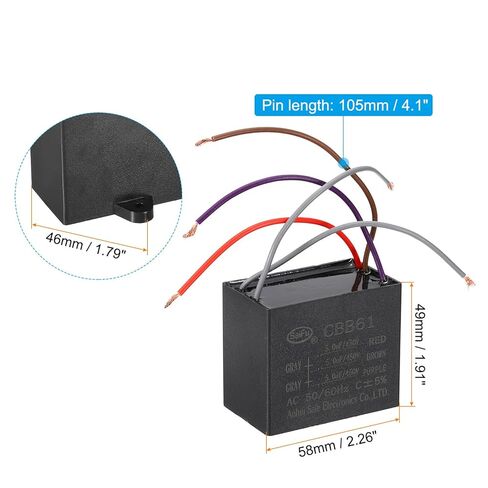

Size:58x46x49mm/2.26x1.79x1.91 inch;
Pin length: 105mm/4.1 inch;
Lead Type: 5 Leads;
Color: Black
Packing List:2Pcs CBB61 Capacitors

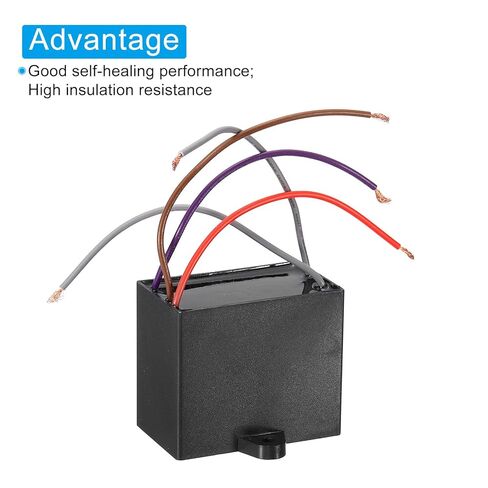

Advantage
CBB61 capacitor is made of electrical insulation material, it has good self-healing performance; high insulation resistance, small high-frequency loss, and low-temperature rise.

Instruction
CBB61 capacitor is suitable for machine starting and running single-phase motors powered by 50HZ AC power supply, and can also regulate the speed of the motor.

Note
Residual voltage when put in: no more than 10% of the rated voltage. Maximum allowable voltage: no more than 1.1 times the rated voltage. Maximum allowable current: no more than 1.3 times the rated current.
